LiTime 30A MPPT Bluetooth Solar Charge Controller
SVT Score, Lower
A 30 A, 12/24 V MPPT controller with Bluetooth built in, a 100 V PV input, a 20 A load output and a low-temperature charge stop.
$133
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
4.5 out of 10At 30 A it sits on the typical rung for a charge controller, so it scores 5 on capacity.
Better on capacityRenogy Rover Lite 60A ControllerAt 60 A of rated charge current it sits on the 60–79 A rung. $249.99Scores 8.0LiTime's product page claims up to 98 percent peak conversion efficiency, but the full manual on LiTime's manual page gives 97 percent, so on the lower figure it scores 6 on efficiency.
Its 100 V maximum PV input is the typical rung, so it scores 5 on operating range.
Better on operating rangeRenogy Rover Lite 60A ControllerRenogy's product page gives a 150 V maximum solar input. $249.99Scores 7.0It has Bluetooth built in, a user-definable battery type for setting LiFePO4 charge voltages, a remote temperature sensor and a 20 A load output, but no parallel or networked operation is stated, so it scores 7 on features.
No certifier directory lists this unit (Intertek, UL, CSA, LabTest, TÜV, SGS), and LiTime's page and manual name no safety listing, so it scores 2 on verification.
Better on verificationRenogy Rover Li 40A Controller$205.99Scores 4.0LiTime's US warranty policy gives charge controllers 3 years and its Canadian policy 2 years, and the shorter term is scored, so it scores 3 on warranty and support.
LiTime sets warranty terms by product, for the original buyer only, with proof of purchase.
Bluetooth, load output, 100 V input

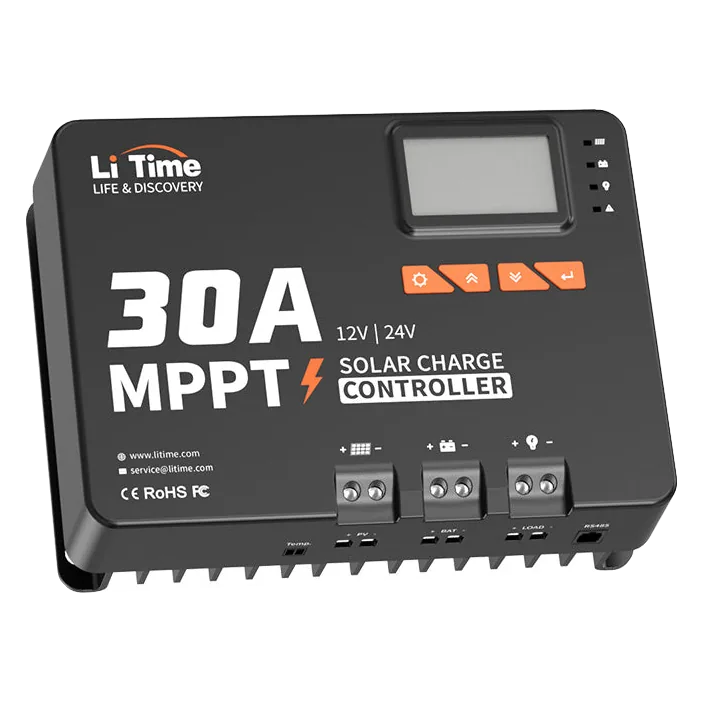

The L24V30A-MPPT-BT-B1 is LiTime's 30 A MPPT solar charge controller for 12 V and 24 V battery banks in vans, boats, sheds and small cabins.
It suits a buyer with up to 450 W of panels on a 12 V bank or 900 W on a 24 V bank who wants phone monitoring and a switched DC load, and who will not need a 36 V or 48 V bank or panel strings above 100 V. $132.99 at litime.com.
Strengths
- Bluetooth built inread in the LiTime Solar app
- 20 A DC load output with timer and dusk modes
- USE battery type sets charge voltages by hand
- Stops lithium charging below 32°F with its sensor
- 450 W of panels at 12 V or 900 W at 24 V
Drawbacks
- 100 V maximum PV input limits series strings
- Page claims 98 percentmanual gives 97 percent
- No parallel or networked operation stated
- IP32 case is for dryindoor mounting
- 2-year term on LiTime Canada against 3 years on its US policy
Specs
- CapacityNot applicable
- AC OutputNot applicable
- System Voltage12/24 V auto
- Panel PowerNot applicable
- Charge Current30-39 A
- Safety ListingNone verifiable
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty2 Years
- MonitoringBluetooth built in
- Weight4.4 lb
At a glance
- 9.65 x 7.09 x 3.25 in
- RS485 port (RJ12)
- Four buttons, LED indicators
- Sold Like New for $97.99
LiTime is the brand of Shenzhen Ampere Time Digital Energy Technology, founded in 2018 and renamed from Ampere Time in December 2022.
It sells direct from litime.com, which ships US orders from warehouses in Los Angeles and Dallas, and through its Amazon store and Walmart's marketplace.
The LiTime L24V30A-MPPT-BT-B1 is a 30 A MPPT solar charge controller for 12 V and 24 V batteries, with Bluetooth built in and read through LiTime's "LiTime Solar" app. It takes up to 100 V of open-circuit panel voltage, tracks from battery voltage plus 3 V to 76 V, and accepts up to 450 W of panels on a 12 V bank or 900 W on a 24 V bank, charging batteries from 9 V to 32 V. LiTime's product page claims 99 percent tracking efficiency and up to 98 percent peak conversion efficiency; the full manual on LiTime's manual page lists 99.9 percent tracking and gives conversion efficiency as 97 percent (printed "<97%"), with a no-load draw of 12 mA at 12 V and 10 mA at 24 V. It ships set to 12 V LiFePO4; the battery types are FLD, SEL, GEL, LI and a user-definable USE type with charge voltages set from 7 V to 15 V. A 20 A DC load output runs in manual, timer, dusk-to-dawn, test or always-on modes, and a remote temperature sensor in the box stops lithium charging below 32°F (0°C) and resumes above 41°F (5°C), a function that is off by default. The die-cast aluminium case is rated IP32, measures 9.65 x 7.09 x 3.25 in and weighs 4.41 lb, with an LCD, four buttons, LED indicators and an RS485 port (RJ12); the box holds the sensor, a magic sticker, six copper wire connectors, six heat-shrink tubes and mounting hardware. It operates from -31°F to 113°F. LiTime sells it at $132.99 and a Like New unit at $97.99 with a 1-year warranty; new units carry LiTime's 3-year charge controller warranty.
