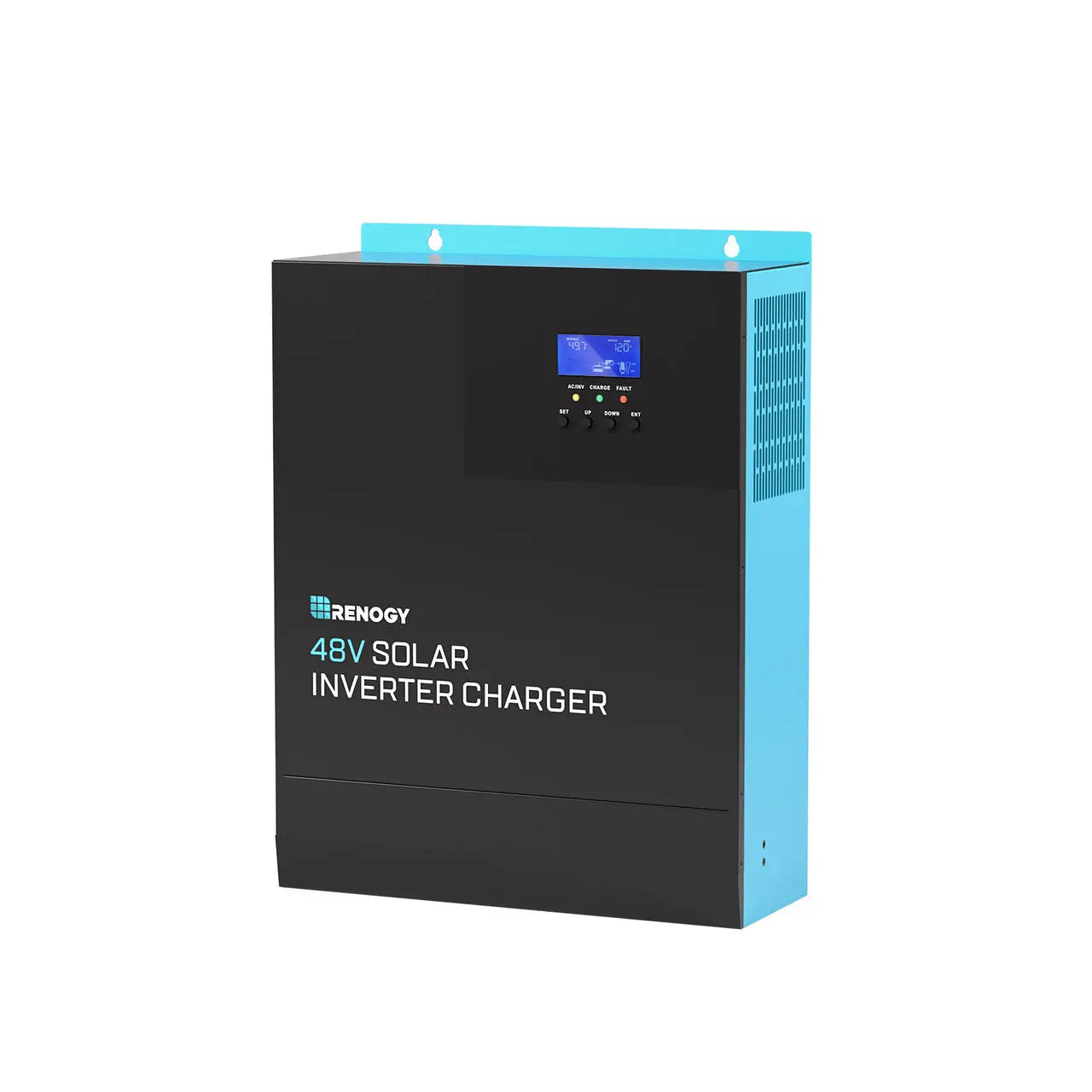

Renogy 3500W 48V Solar Inverter Charger
SVT Score, Upper
A 48 V, 3,500 W pure sine wave inverter with an 80 A, 145 V MPPT controller, a 40 A AC charger and a 10 ms transfer, at 23.8 lb.
$770
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
3.4 out of 10At 3,500 W continuous it sits on the 3,500 to 4,999 W rung for a 48 V all-in-one, so it scores 3 on capacity.
Renogy's manual rates inverter efficiency above 90 percent and idle draw at 48 W, which is 13.7 W per kW of its 3,500 W rating, both on the 4 rung, so it scores 4 on efficiency.
Its manual rates peak power at 7,000 VA, 2.0 times its continuous rating, so it scores 5 on operating range.
It switches over in 10 ms, carries the built-in MPPT controller and a 40 A AC charger equal to 160 A at 12 V, but its RS485/CAN port is documented only for Renogy's separate BT-2 Bluetooth module, with no stated battery BMS link, parallel stacking or 240 V output, so it scores 6 on features.
Renogy claims only CE and FCC marks for it, and no certifier directory searched (Intertek, UL Product iQ, CSA, the CEC list, LabTest, TÜV SÜD, TÜV Rheinland and SGS) lists the RIV4835CSH1S; Intertek holds records for its RIV4835PCS-1SS and RIV4836ECS-1SS siblings only, so it scores 2 on verification.
Better on verificationRenogy 3500W 48V Pure Sine Inverter Charger$599.99Scores 4.0Renogy's warranty schedule gives 1 year for materials and workmanship and its product page calls that year prorated, so it scores 1 on warranty and support.
Renogy sets warranty terms by model, for the original buyer only, and takes unused renogy.com orders back within 30 days, lithium batteries within 7.
Better on warranty & supportRenogy 3500W 48V Pure Sine Inverter ChargerRenogy's product page. $599.99Scores 3.0$769.99 at renogy.com.
Older all-in-one, one-year warranty
The RIV4835CSH1S is Renogy's earlier 48 V solar inverter charger, a 3,500 W pure sine wave inverter with an 80 A MPPT controller and a 40 A AC charger for off-grid and backup systems.
It suits a buyer on a 48 V bank who wants solar, utility and generator charging with a 10 ms transfer in one box, and who will not need more than a year of warranty cover, closed-loop battery communication or 240 V output.
Strengths
- 3,500 W continuous and 7,000 VA peak
- 80 A MPPT controller with a 60 to 145 V operating window
- 10 ms transfer between utility and battery
- Under 25 W idle in power-saver mode
- Four charging modesincluding solar only and hybrid
Drawbacks
- 1-year warrantycalled prorated on the product page
- Bluetooth needs the separate BT-2 module
- No stated BMS communicationparallel stacking or 240 V output
- Inverter efficiency rated only above 90 percent
- No battery cable includedRenogy recommends 3 ft of 4 AWG
Specs
- CapacityNot applicable
- AC Output3,000-3,999 W
- System Voltage48 V
- Panel PowerNot applicable
- Charge Current40-49 A
- Safety ListingNone verifiable
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty1 Year
- MonitoringBluetooth add-on
- Weight23.8 lb
At a glance
- 426 x 322 x 124 mm
- IP20, 60 dB or less
- Dry-contact and remote ports
- Sold with 2 or 4 batteries
Renogy is the brand of RNG International, Inc., of Ontario, California, which Dr. Yi Li founded in 2010.
It sells direct from renogy.com and its Amazon and eBay brand stores, and through Home Depot, Lowe's, Best Buy, Camping World and Walmart's marketplace.
The Renogy RIV4835CSH1S is a 48 V all-in-one solar inverter charger: a 3,500 W (3,500 VA) pure sine wave inverter rated 7,000 VA peak, with an 80 A MPPT solar charge controller and a 40 A AC charger, by Renogy's manual and product page. Output is 120 VAC ±5 percent at 50 or 60 Hz, settable to 100, 105, 110 or 120 V with power derated in proportion. It runs from a 48 V battery between 40 and 60 V and starts at 44 V. The AC input takes 90 to 140 VAC with a 40 A bypass, and transfer takes 10 ms. The solar input has a 145 V recommended maximum open-circuit voltage (150 V actual), a 60 to 145 V operating range and a 60 to 115 V MPPT window at up to 50 A; the product page rates 4,400 W of PV input, the manual 4,800 W in and 4,500 W out. Solar and AC charging together reach 120 A. Renogy rates inverter efficiency above 90 percent, idle draw at 48 W and under 25 W in power-saver mode. It has an LCD with LED indicators, four charging modes (PV priority, utility priority, hybrid and solar only), three output modes, a dry-contact port, a wired-remote port and an RS485/CAN port that Renogy documents for its optional BT-2 Bluetooth module and DC Home app. It is fan-cooled, IP20 and rated 60 dB or less, and measures 426 x 322 x 124 mm (16.8 x 12.7 x 4.9 in) and weighs 23.8 lb. No battery cable is included; Renogy recommends 3 ft of 4 AWG. Renogy sells it alone at $769.99, with two 48V 50Ah batteries at $2,153.98 and with four at $3,477.98.
