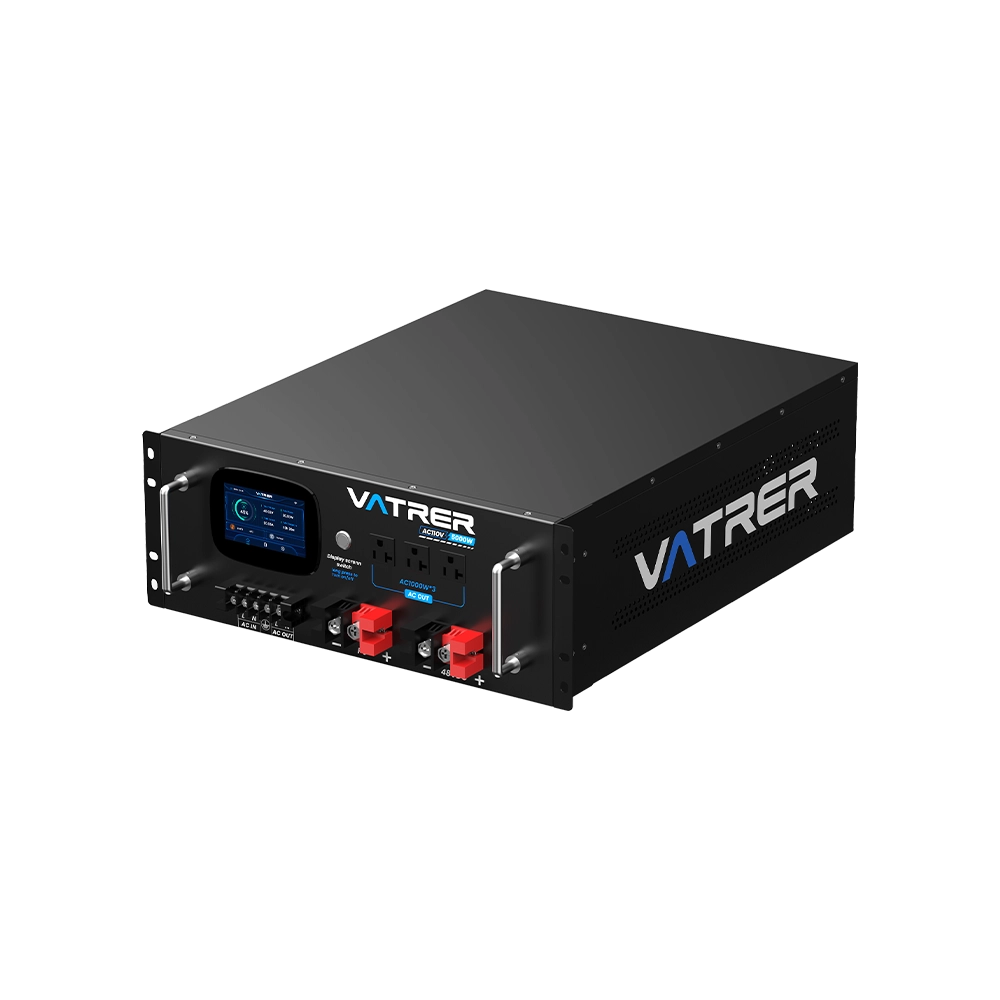

Vatrer 48V 5000W Rack-Mount Solar Inverter With MPPT
- 48 V system
- 4,000-5,999 W output
- 50-59 A charging
- 1-year warranty
A 5,000 W, 48 V rack-mount inverter with a 120 A MPPT solar charger, a 50 A AC charger, Bluetooth and a touch display for 48 V server-rack batteries.
$800
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
4.0 out of 10Strengths
- Invertersolar and AC charging in one box
- Mounts in a rack beside server-rack batteries
- Bluetooth monitoring
- Reads status from connected batteries
- Low idle draw in a tester's measurement
Drawbacks
- Low maximum solar voltage limits string length
- No 240 V output or stated parallel
- No surge rating or weight published
- Short warranty for an inverter
- Listed as a pre-order
Specs
- CapacityNot applicable
- AC Output4,000-5,999 W
- System Voltage48 V
- Panel PowerNot applicable
- Charge Current50-59 A
- Safety ListingNone verifiable
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty1 Year
- MonitoringBluetooth built in
Not published by Vatrer: weight.
At a glance
- 19-inch rack case
- 482 x 465 x 178 mm
- Three 1,000 W AC sockets
- Solar-first or utility-first
- Vatrer Power is the brand of Shenzhen Vatrer Power Source Technology Co., Ltd., a company based in Shenzhen, China, that its own blog says was founded in 2021.
- The VATRER trademark is registered at the USPTO to Guangdong Zhongju Power Technology Co., Ltd. of Huizhou, and no US company is named behind the brand.
- It sells with a cart at vatrerpower.com, which also runs Canadian, European, Japanese and Australian stores.
- In the US it also sells on Amazon through the VATRER POWER brand store and on Walmart.com as the marketplace seller VATRER POWER.
The Vatrer 48V 5000W Solar Inverter (store SKU D-5000W-NBQ) is a 19-inch rack-mount all-in-one unit that combines a 5,000 W pure sine wave inverter, an MPPT solar charge controller and an AC battery charger for a 48 V battery bank.
It puts out 110 V AC at 60 Hz, and Vatrer's manual and spec table rate its efficiency above 98 percent without a no-load figure. The manual says that with no AC input the output switches on only for loads above 15 W, checking every 25 seconds.
Solar input takes up to 5,000 W and 150 V, with a 60 to 150 V MPPT range, a 60 to 105 V optimal range and up to 120 A of charging. The AC charger gives up to 50 A from a 110 V input, and the charging voltage is 58.4 V.
The manual gives a transfer under 20 ms in inverter mode; the product page adds 10 ms or less in UPS mode. Working modes include utility first and solar first, and charging modes include solar only.
It has a touch display showing the status of connected batteries, Bluetooth per the product page, three AC sockets of up to 1,000 W each and AC output terminals. It measures 482 x 465 x 178 mm (18.98 x 18.31 x 7.01 in), runs from 14 to 122°F at 45 dB or less, and Vatrer publishes no weight or surge rating.
Vatrer lists it as a pre-order.
