ECO-WORTHY 5000W 48V Off-Grid All-in-One Inverter
SVT Score, Upper
A 5,000 W, 120 V all-in-one off-grid inverter charger with a 100 A, 500 V MPPT controller and a 40 A AC charger that needs a second unit for 120/240 V split phase.
$760
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.6 out of 10At 5,000 W continuous it sits on the 5,000 to 5,999 W rung for a 48 V all-in-one, so it scores 5 on capacity.
Better on capacityECO-WORTHY Liber 6kP Inverter$789.99Scores 7.0The spec table lists efficiency above 95 percent while the manual gives 92 percent, and ECO-WORTHY publishes no no-load draw (its 50 W power-saving figure is a load threshold, not an idle draw), so the lower 92 percent is scored alone, capped at 6, and it scores 6 on efficiency.
Its 10,000 W peak is 2.0 times its continuous rating, so it scores 5 on operating range.
It has a built-in MPPT controller, a 10 ms typical transfer by the manual, parallel operation of up to 6 units, RS485 communication with a matched battery's BMS, app monitoring through a Wi-Fi module and a 40 A AC charger, 160 A at 12 V-equivalent, but one unit puts out 120 V only, with 120/240 V split phase needing two units, so it scores 8 on features.
Intertek's directory lists this inverter, by its model name ECO5000W(SR), as Listed to UL 1741 and to CSA C22.2 No. 107.1 under Xiamen Eco-Sources Technology, so it scores 8 on verification.
ECO-WORTHY's all-in-one inverter policy gives this model a 2-year tiered term, with free repair or replacement for the first 18 months and trade-in credit after, which is scored one rung lower as prorated, so it scores 1 on warranty and support.
Eco-Worthy's warranty page gives most products 1 year and its 12 and 24 V batteries 3 years, for the original buyer only, against 10 years on its 48 V server-rack and PowerMega batteries and 2 years on its all-in-one inverters, both tiered by age.
$759.99 at eco-worthy.com.
Pair two units For 240 V

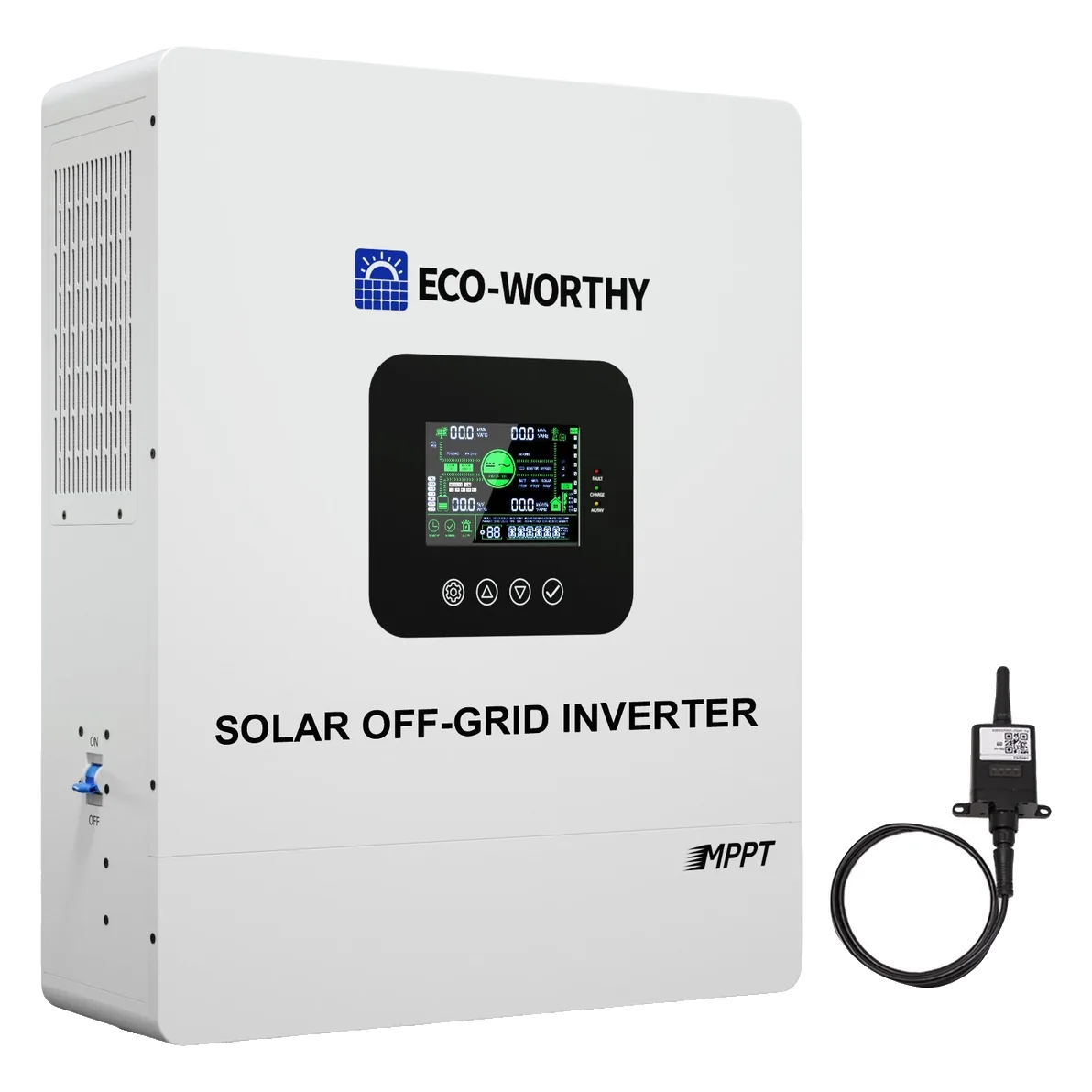

The ECO5000W(SR) is ECO-WORTHY's 48 V all-in-one off-grid inverter charger, a 5,000 W, 120 V pure sine wave inverter with a 100 A MPPT controller and a 40 A AC charger for off-grid homes and backup systems that can grow by stacking units.
It suits a buyer who wants a 120 V all-in-one with a 500 V PV input now and the option to pair a second unit for 120/240 V later, and who will not need 240 V from a single unit.
Strengths
- Up to 6 units in parallel for 30 kW
- 120/240 V split phase from two units
- 100 A MPPT120-500 V PV input
- 10 ms typical transferper the manual
- Timed charging in three daily time slots
Drawbacks
- One unit puts out 120 V only despite the split-phase URL and heading
- Spec table says over 95% efficiencymanual says 92%
- Bypass listed at 63 A in the spec table40 A in page text
- No published no-load draw
- Free repair or replacement for 18 monthsthen trade-in credit
Specs
- CapacityNot applicable
- AC Output4,000-5,999 W
- System Voltage48 V
- Panel PowerNot applicable
- Charge Current40-49 A
- Safety ListingCSA 107.1 listed, UL 1741 listed
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty2 Years
- MonitoringWired display or port only
- Weight28.7 lb
At a glance
- 17.6 x 13.8 x 5.2 in case
- USB, RS485 and dry contact
- In 5kW bundle from $1,549.99
ECO-WORTHY is the brand of Xiamen Eco-Sources Technology Co., Ltd of Xiamen, China, which its own pages date to 2007, with a US company, Eco-Sources USA, Inc., in Springfield, Missouri.
It sells direct from eco-worthy.com, which ships US orders from a US warehouse, and through its Amazon and eBay stores and dealers such as Off Grid Stores and Current Connected.
The ECO-WORTHY ECO5000W(SR) (store SKU GW-L03YTJUSKBJ5000W-1; the page's manual link also names it HYP48S+U100-H) is a 48 V all-in-one off-grid inverter charger: 5,000 W continuous pure sine wave output at 120 VAC and 10,000 W peak, efficiency above 95% on the spec table and 92% in the manual, and a 10 ms typical transfer between bypass and inverter. Solar input is a 100 A MPPT controller rated 5,500 W, with a 500 V maximum open-circuit voltage and a 120-450 V MPPT range. AC input is 110/120 VAC (90-140 VAC) with a 63 A bypass breaker; the AC charger is rated 40 A, with up to 100 A of combined AC and solar charging. One unit puts out 120 V; two units paired give 120/240 V split phase, and up to 6 units stack for 30 kW. It runs a 48 V battery (40-60 V), lead-acid or lithium, with RS485 BMS communication, a USB port and a dry-contact relay, and app monitoring through a Wi-Fi module. It measures 446.9 x 350 x 133 mm (17.6 x 13.8 x 5.2 in) and weighs 13 kg (28.7 lb) for the US model by the manual. ECO-WORTHY's US page lists the inverter alone in the box; its Canadian store lists a Wi-Fi module, parallel communication and current-sharing cables, battery cables and an RS485 cable. It is also sold in the 5kW Off Grid Home Power Bundle ($1,549.99) and the 5kW PowerMega bundle ($3,099.99).
Questions answered from our data
Is ECO-WORTHY good?We list 20 ECO-WORTHY products and score 19 of them. Their overall scores run from 4.0 to 6.6, with a median of 5.6, against a median of 5.5 for all 127 products we score.
How much does an off-grid inverter cost?The 9 off grid inverters we list run from $500 to $3,800, with a median of $760.
Are off-grid inverters UL listed?One of the 9 off grid inverters we list carries a UL 1741-type listing we could look up by model.
Which off-grid inverters give 3,000 W or more?Nine of the 9 off grid inverters we list are rated for 3,000 W or more, continuous.
