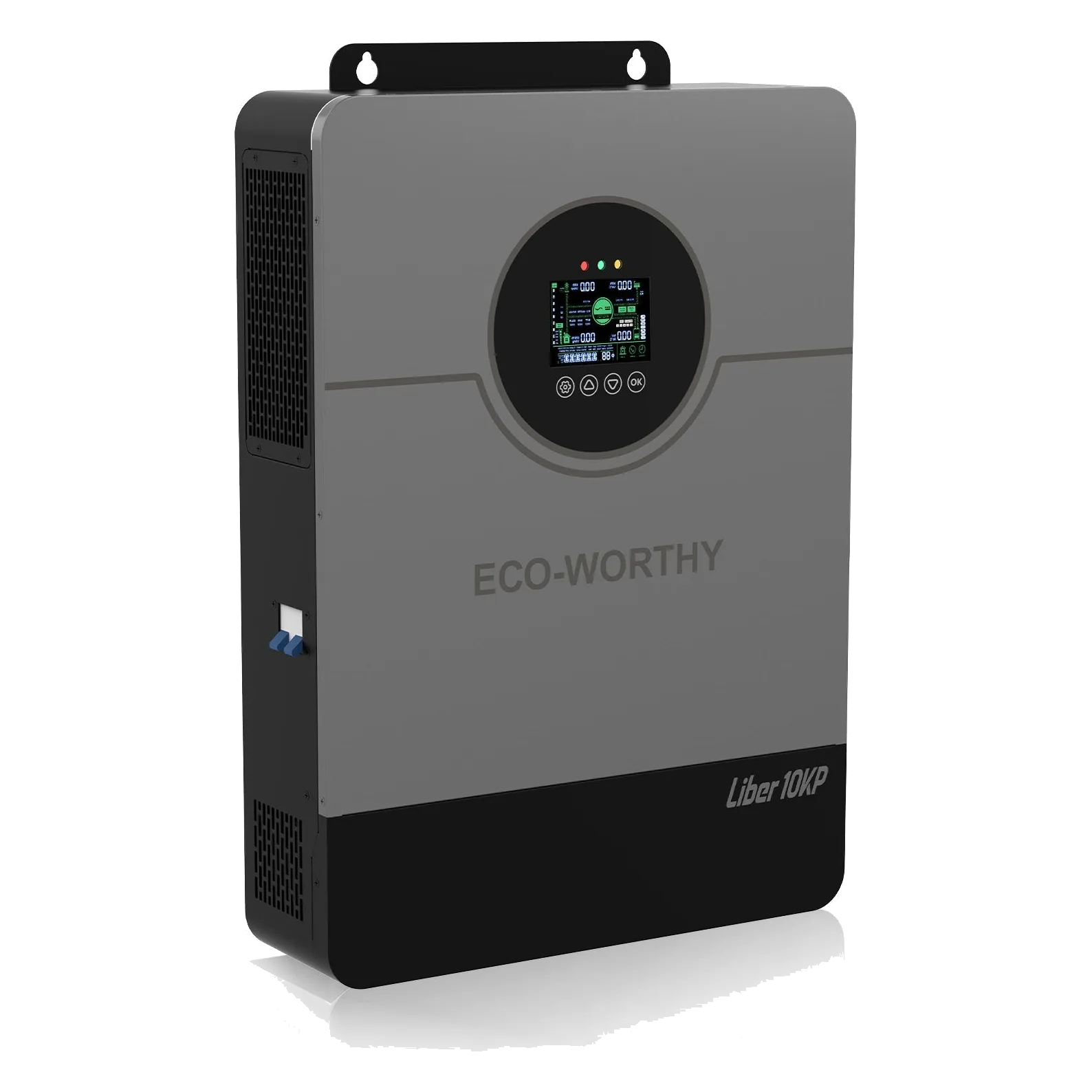

ECO-WORTHY Liber 10KP 10kW Split-Phase All-in-One Off-Grid Inverter
A 10,000 W, 48 V all-in-one off-grid inverter charger with 120/240 V split phase from one unit, two MPPT inputs and a 120 A AC charger.
$1,510
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.6 out of 10At 10,000 W continuous it sits on the 8,000 to 11,999 W rung for a 48 V all-in-one, so it scores 8 on capacity.
Its 20,000 W peak is 2.0 times its continuous rating, so it scores 5 on operating range.
It has a 10 ms typical transfer, two built-in MPPT controllers, 120/240 V split phase from one unit, parallel operation of up to 6 units, CAN and RS485 battery communication, a Wi-Fi module with app monitoring and a 120 A AC charger, 480 A at 12 V-equivalent, so it scores 10 on features.
Intertek's directory lists this inverter, by its model name ECO10000W(SR), as Recognized, not Listed, to UL 1741 and CSA C22.2 No. 107.1 under Xiamen Eco-Sources Technology, so it scores 4 on verification.
Better on verificationECO-WORTHY 5000W All-in-One InverterIntertek's directory lists this inverter. $759.99Scores 8.0Eco-Worthy's all-in-one inverter policy gives this model 2 years, with free repair or replacement for 18 months and a 60 or 30 percent trade-in credit after that, and the manual on its Canadian store states 1 year, so it scores 1 on warranty and support.
Eco-Worthy's warranty page gives most products 1 year and its 12 and 24 V batteries 3 years, for the original buyer only, against 10 years on its 48 V server-rack and PowerMega batteries and 2 years on its all-in-one inverters, both tiered by age.
Its spec table, Eco-Worthy's Canadian page and the readable copy of its manual publish no inverter efficiency and no no-load draw, and its 50 W power-saving threshold is a load level rather than an idle draw, so it is not scored on efficiency.
$1,509.99 at eco-worthy.com.
Split phase from one unit
The ECO10000W(SR) is Eco-Worthy's Liber 10KP, a 48 V all-in-one off-grid inverter charger with a 10,000 W, 120/240 V split-phase pure sine wave inverter, two MPPT solar inputs and a 120 A AC charger for off-grid homes and home backup.
It suits a buyer who wants 240 V loads such as a well pump running from one off-grid unit, and who will not need to export power to the grid or a published idle-draw figure.
Strengths
- 10 ms typical transfer to battery
- 120/240 V split phase from one unit
- Dual MPPT11,000 W PV, 500 V Voc
- 120 A grid charging200 A combined
- Up to 6 units in parallel for 60 kW
Drawbacks
- No inverter efficiency or no-load draw published
- Full cover lasts 18 monthsthen trade-in credit only
- Canadian manual says 1 yearpolicy page says 2
- Cannot export power to the grid
- IP20: indoor installation only
Specs
- CapacityNot applicable
- AC Output6,000 W or more
- System Voltage48 V
- Panel PowerNot applicable
- Charge Current100 A or more
- Safety ListingRecognized component only
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty1 Year
- MonitoringWired display or port only
- Weight59.5 lb
At a glance
- 620 x 445 x 130 mm
- 6 HP motor rating
- 63 A bypass current
- Sold in PowerMega bundles
ECO-WORTHY is the brand of Xiamen Eco-Sources Technology Co., Ltd of Xiamen, China, which its own pages date to 2007, with a US company, Eco-Sources USA, Inc., in Springfield, Missouri.
It sells direct from eco-worthy.com, which ships US orders from a US warehouse, and through its Amazon and eBay stores and dealers such as Off Grid Stores and Current Connected.
The ECO-WORTHY Liber 10KP (model ECO10000W(SR), store SKU L03SR10KWYTJ-1) is a 48 V all-in-one off-grid inverter charger rated 10,000 W continuous and 20,000 W peak, pure sine wave, 120/240 V split phase or 120 V single phase (selectable), 50/60 Hz, with a 6 HP motor rating and a 10 ms typical switching time. It has two MPPT solar inputs of 5,500 W each (11,000 W total), 22 A per input, 500 V maximum open-circuit voltage and a 125-425 V MPPT range, charges at up to 200 A from solar, 120 A from grid or generator and 200 A combined, and takes 90-140 V AC input with a 63 A bypass. It works with 48 V lithium, lead-acid and user-defined batteries (40-60 V), with CAN, RS485 and USB ports, and parallels up to 6 units (60 kW). It is IP20 for indoor use only, operates from -10 to 55 °C (derating above 45 °C), measures 620 x 445 x 130 mm (24.4 x 17.5 x 5.1 in) and weighs 27 kg (59.5 lb). In the box: the inverter and accessories; Eco-Worthy's page says a Wi-Fi module is standard, and its Canadian page lists a Wi-Fi module, parallel cable, RS485 cable and battery cables. It is also sold in the 10kW Home Backup Bundle with a PowerMega 314 battery (from $3,799.99), the Home Backup Power Bundle with 48V 100Ah batteries (from $4,799.99) and the 10kW Complete Off-Grid Solar Power System with 20.48 to 30.72 kWh of battery (from $8,999.99) at eco-worthy.com.
Questions answered from our data
How much does an off-grid inverter cost?The 9 off grid inverters we list run from $500 to $3,800, with a median of $760.
Are off-grid inverters UL listed?One of the 9 off grid inverters we list carries a UL 1741-type listing we could look up by model.
Which off-grid inverters give 3,000 W or more?Nine of the 9 off grid inverters we list are rated for 3,000 W or more, continuous.
What warranty do off-grid inverters have?Of the 9 off grid inverters we list, 9 state a warranty; the most common is 1 Year (5).
