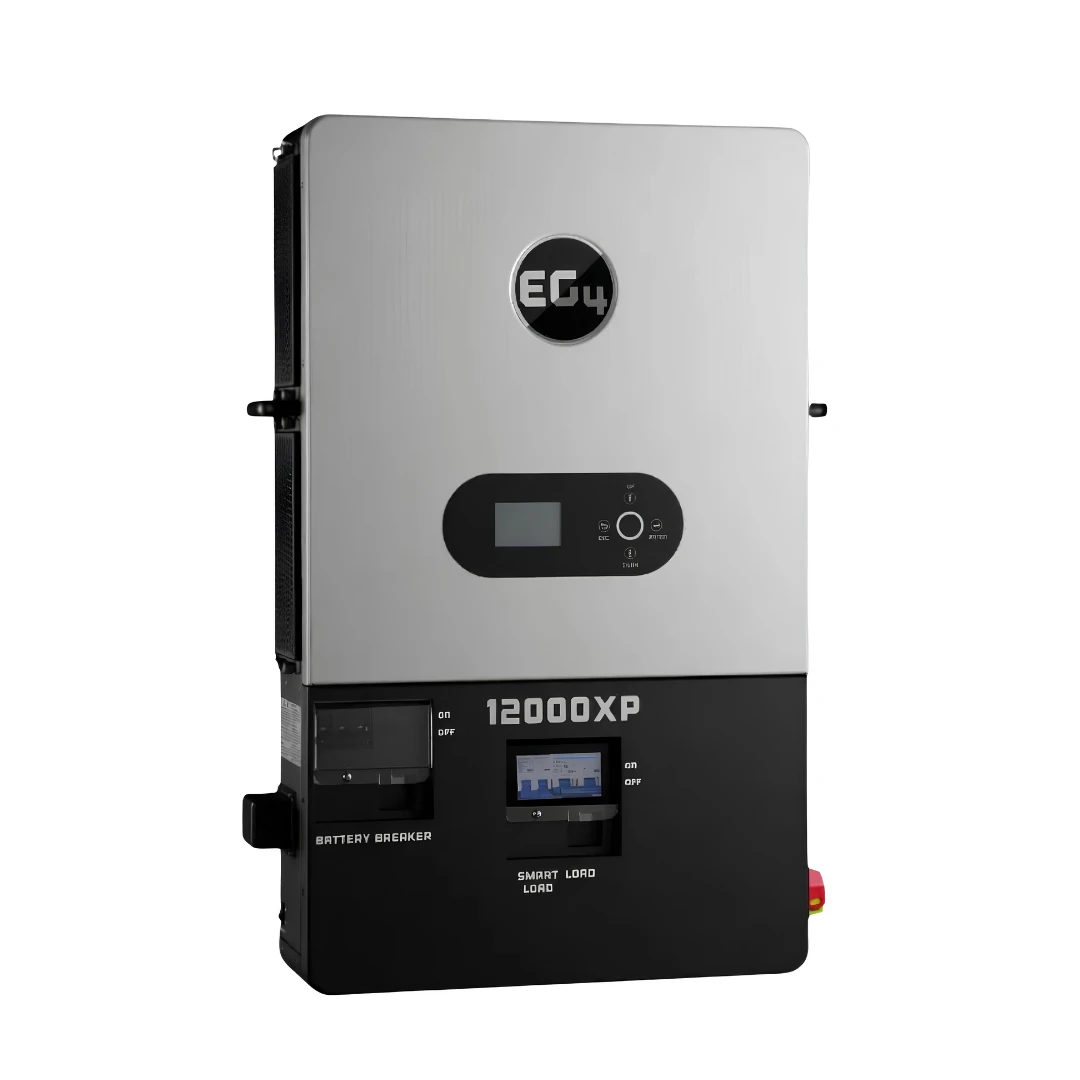

EG4 12000XP V2 48V Split-Phase Off-Grid Inverter
A 48 V all-in-one off-grid inverter charger giving 12,000 W of 120/240 V split phase from battery and 15,000 W with solar, with two MPPT inputs for 24,000 W of PV and a 100 A AC charger.
$1,900
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
6.5 out of 10It suits a buyer who wants whole-house 240 V power and up to 24,000 W of solar on one off-grid unit, and who will not need grid export or a low idle draw.
Strengths
- 12,000 W from battery15,000 W with PV
- Under 10 ms transfer as a single unit
- Two MPPTs24,000 W PV, 500 V max
- 100 A AC charging250 A from generator
- Smart load port for load shedding or AC coupling
Drawbacks
- Battery-to-load efficiency 90.2%
- 15,360 W peak is only 1.28x the battery rating
- Manual lists 12,000 W max continuousspec sheet 15,000 W
- No no-load draw publishedstandby under 70 W
- Warranty needs registration or authorised-seller proof
Specs
- CapacityNot applicable
- AC Output6,000 W or more
- System Voltage48 V
- Panel PowerNot applicable
- Charge Current100 A or more
- Safety ListingCSA 107.1 listed, UL 1741 listed
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty5 Years
- MonitoringWired display or port only
- Weight104.7 lb
At a glance
- 34.25 x 20.87 x 5.91 in case
- IP20 indoor enclosure
- 195 A locked rotor amps
- Parallel cable in the box
EG4 is the brand of EG4 Electronics LLC of Sulphur Springs, Texas, part of Energy Access Innovations with its sister company Signature Solar.
It sells with a cart through Signature Solar at signaturesolar.com and through approved distributors and dealers such as Current Connected, Shop Solar and BigBattery, while eg4electronics.com has no cart.
The EG4 12000XP V2, model IV-15000-XP-IN-01 (EG4 SKU EG4INV12KXPV2US), is a 48 V all-in-one off-grid inverter charger rated 12,000 W continuous from battery alone and 15,000 W at 240 V with solar input as well (62.5 A at 240 V; the battery circuit alone supports 12,000 W, by EG4's 15 kW app note), at 120/240 V split phase or 208 V, with a peak of 15,360 W for about 10 seconds on battery, a 195 A locked-rotor rating and a switching time under 10 ms for one unit or under 20 ms in parallel. The spec sheet rates battery-to-load efficiency at 90.2% and PV-to-load at 93.5%, with standby draw under 70 W; it publishes no no-load draw while inverting. Solar input is two MPPT trackers with two strings each, 35 A per tracker, a 100-480 VDC input range (500 V absolute maximum), a 120-385 VDC MPPT range, 24,000 W utilized and 28,000 W the recommended maximum array. AC input is 120/240 or 120/208 V with a 100 A grid bypass, a 90 A generator bypass and 62.5 A of continuous generator input, plus a smart load port for load shedding or AC coupling and rapid-shutdown terminals. It runs a 48 V lead-acid or lithium battery (over 400 Ah recommended) at up to 250 A and 12,000 W of charge or discharge, with AC charging set from 0 to 100 A and generator charging from 0 to 250 A, and RS485, CAN and Wi-Fi communication, closed-loop with EG4 and listed batteries. Up to 16 units run in parallel. It measures 34.25 x 20.87 x 5.91 in (870 x 530 x 150 mm), weighs 104.7 lb (47.5 kg), runs from 32 to 113 °F at under 60 dB, and is IP20 for indoor installation. In the box: the inverter, a Wi-Fi dongle, wall-mounting bracket and template, expansion bolts and screws, a 2 m battery communication cable and a 2 m parallel cable. EG4 sells it through its sister company Signature Solar.
