US Water Systems Magna Compact Whole House Water Filter
- 10-15 GPM
- Filter life 6-12 months
- Lifetime warranty
SVT Score, Upper
A three-stage whole house cartridge filter for city water with a carbon block and an anti-scale or Interceptor third stage, rated 15 GPM.
$822
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.7 out of 10Strengths
- High flow with no pressure drop in testing
- No electricitydrain line or salt to manage
- Double O-ring seal stops water slipping past cartridges
- Lifetime cover on the filter housings
Drawbacks
- No certified contaminant reduction
- Anti-scale stage does not soften hard water
- Cartridges need changing at least once a year
- A tester found the install hard
- Disinfection byproducts not fully removed in a tester's first setup
A simple, high-flow chlorine filter for city homes, but nothing is certified
Specs
- CertificationsNot certified
- WarrantyLifetime
- Connection Size1 in
- Housing MaterialPolypropylene
- Flow Rate / Water Pressure10-15 GPM
- Filter Lifespan / Capacity6-12 months
- DimensionsApprox. 23" x 25" wall footprint
- Country of OriginUSA
- Filtration TypeCarbon BlockSalt-Free ConditionerSediment
- Contaminant RemovalChloramineChlorineScaleSedimentTaste and Odor
At a glance
- Powder-coated steel bracket
- Mounts outdoors
- Color-coded cartridges
US Water Systems, Inc. is a family company based in Plainfield, Indiana, in business since 1995.
It sells whole house filters, iron filters, softeners and commercial reverse osmosis units through its own store, and cartridges through its Amazon store.

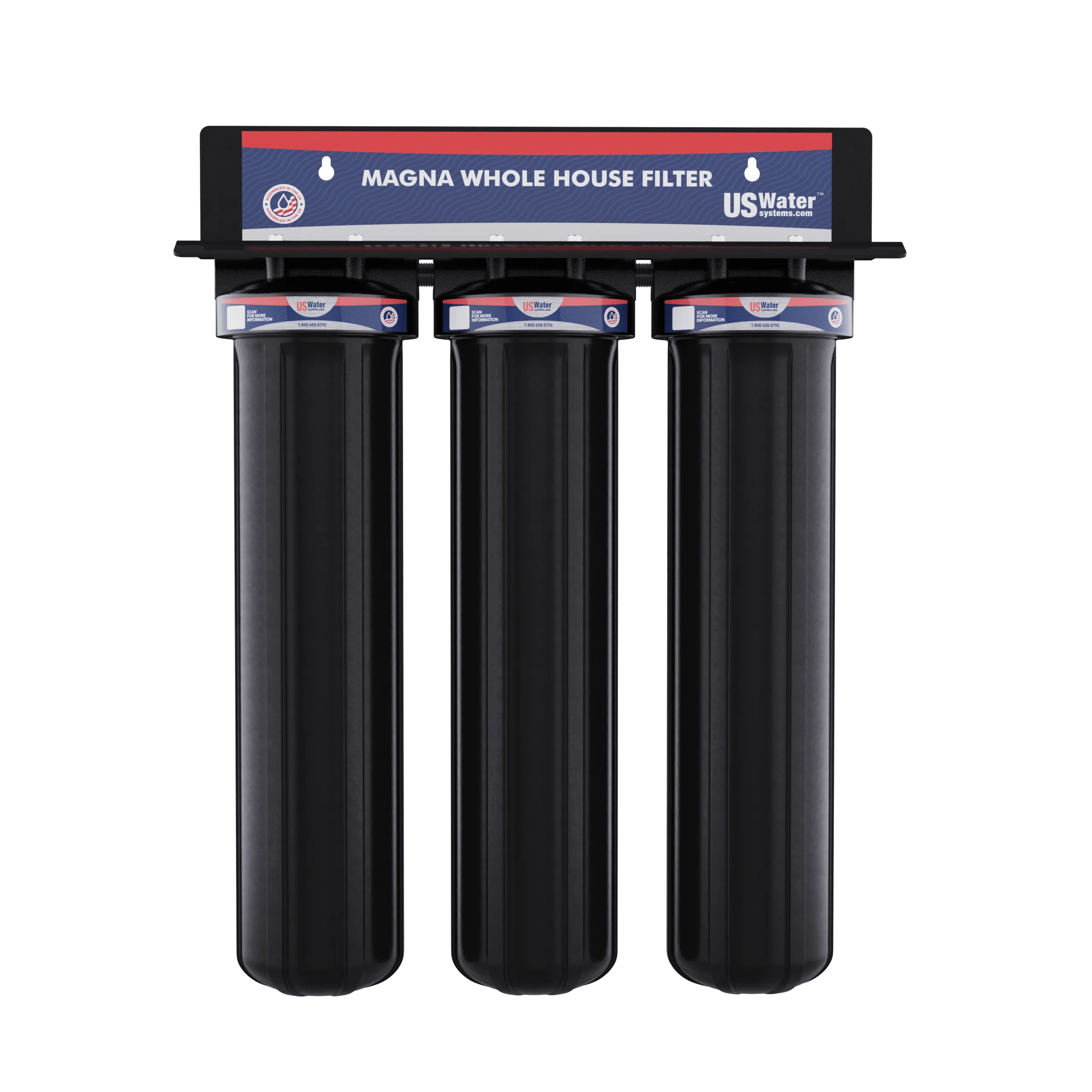

The US Water Systems Magna Compact (320-BGF3-20) is a three-housing whole house cartridge filter for city water that hangs on one powder-coated steel bracket and needs no power, drain or brine tank. Stage one is a 5 micron sediment cartridge and stage two a carbon block for chlorine, taste and odour.
Stage three is chosen at order: a polyphosphate anti-scale cartridge that stops scale sticking without softening, or the Interceptor sub-micron cartridge for homes that already soften.
The 20 inch housings are reinforced polypropylene with stainless-steel threads and a double O-ring seal, pressure tested to 90 psi and 100 F, with 1 inch ports. US Water rates the system at 15 GPM and the manual rates the 20 inch housings up to 25 GPM.
It fits about 23 by 25 inches of wall, indoors or out, and ships with a filter wrench and the cartridges.
