US Water Systems Bodyguard Whole House Water Filter
- 5-10 GPM
- Filter life 6-12 months
- NSF/ANSI 61
- Lifetime warranty
SVT Score, Upper
An upflow carbon, catalytic carbon and KDF whole house filter for city water with a 5 micron pre-filter and no power or drain.
$1,000
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
6.1 out of 10Strengths
- No electricitydrain line or wastewater
- Media tank lasts years between rebeds
- Lifetime cover on the tank and head
- Bypass valve included
- Catalytic carbon handles chloramine as well as chlorine
Drawbacks
- No certified contaminant reduction
- Media must be poured and soaked at install
- Not suited to water carrying iron
- Pre-filter cartridge needs regular replacement
- Does not soften hard water
- No self-cleaning backwash on this model
A strong chloramine filter for city homes that needs no power, but uncertified
Specs
- CertificationsNSF/ANSI 61
- WarrantyLifetime
- Connection Size1 in
- Housing MaterialComposite
- Flow Rate / Water Pressure5-10 GPM
- Filter Lifespan / Capacity6-12 months
- Weight40 lb dry (10 GPM configuration)
- Country of OriginUSA
- Filtration TypeCatalytic CarbonGranular Activated CarbonKDF
- Contaminant RemovalChloramineChlorineSedimentTaste and Odor
At a glance
- Upflow bed design
- Ohio-made tank shell
- KDF-55 copper-zinc layer
US Water Systems, Inc. is a family company based in Plainfield, Indiana, in business since 1995.
It sells whole house filters, iron filters, softeners and commercial reverse osmosis units through its own store, and cartridges through its Amazon store.
The US Water Systems Bodyguard (117-BGS) is a whole house filter for city water built as a single upflow tank with no control valve, so it needs no power or drain line.

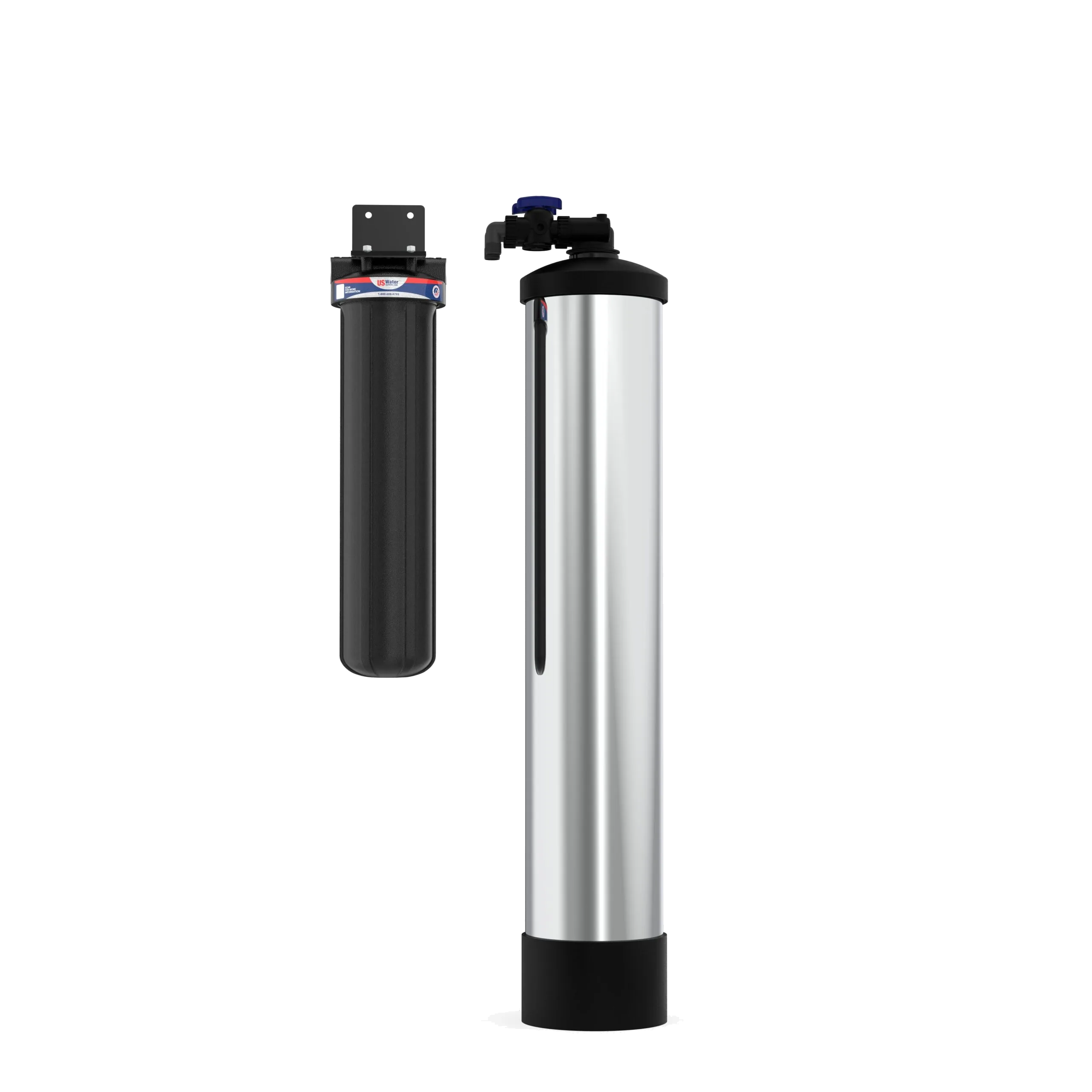

The bed is quartz gravel, KDF-55, coconut-shell granular activated carbon and catalytic carbon, fed through a 4.5 by 20 inch 5 micron Magna pleated pre-filter on a wall bracket. The 10 GPM model uses a 9 by 48 inch fiberglass-reinforced tank with 1 inch MNPT ports and weighs 40 lb dry and 90 lb in service.
US Water rates it at 10 GPM maximum and 8 GPM continuous, with 15 and 20 GPM models in larger tanks. The manual limits chlorine to 4 mg/L and iron to 0.3 mg/L, and the box holds the media, the bypass, the pre-filter housing and a funnel.
