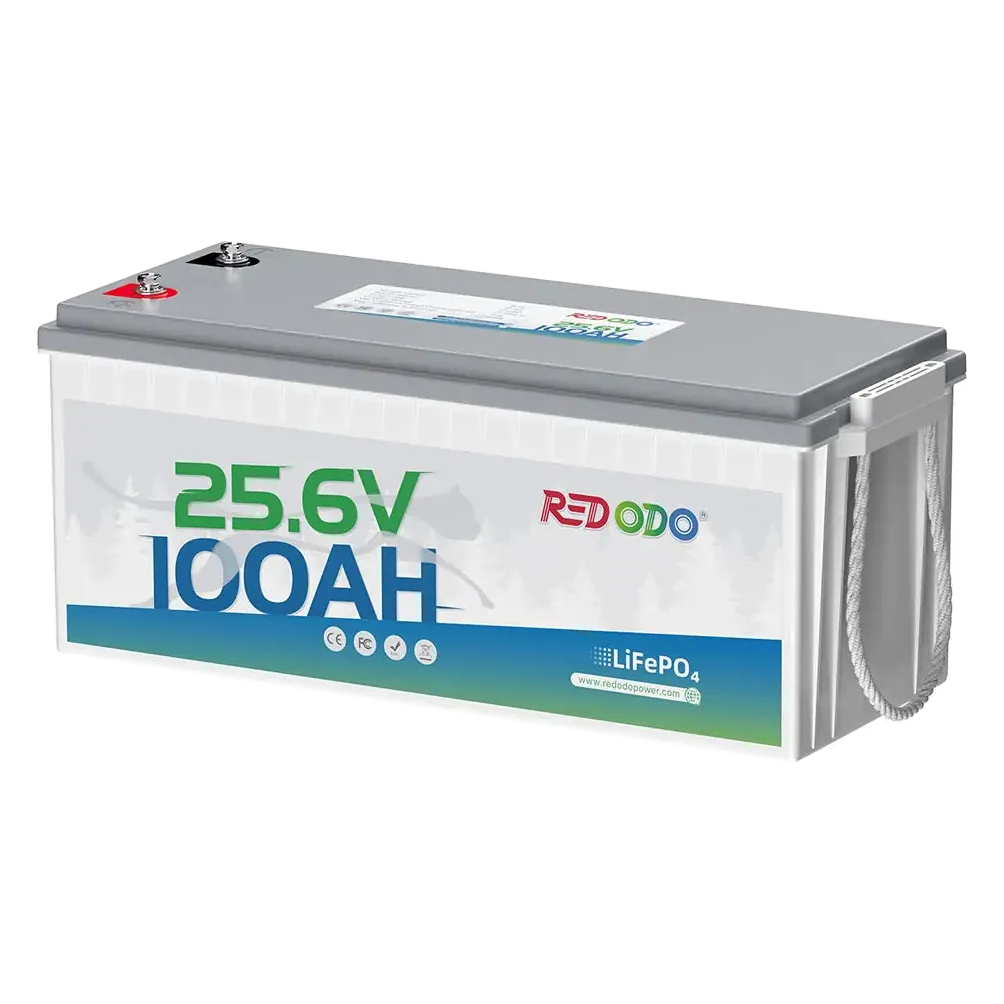

Redodo 24V 100Ah LiFePO4 Battery
SVT Score, Mid
Redodo’s base 25.6 V, 100 Ah LiFePO4 battery with a 100 A BMS and IP65 case, without Bluetooth or a low-temperature cut-off.
$470
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
4.8 out of 10It stores 2,560 Wh, so it scores 7 on capacity.
At 45.58 lb on Redodo's spec table it holds 56.2 Wh per pound, so it scores 6 on efficiency.
Redodo rates its BMS at 100 A maximum continuous discharge, 1.0C on 100 Ah, with a 400 A one-second surge on the spec table and 500 A in its manual, so it scores 5 on operating range.
Redodo rates it for 4,000 cycles at 25°C, 0.2C and 100% depth of discharge, with no end-of-life capacity in its spec table or manual, so the 4,000 is taken one rung down for the missing end point, and it scores 6 on lifespan.
It carries an IP65 rating but allows only two in series against four in parallel, and has no Bluetooth, no low-temperature charge cut-off, no heating and no CAN or RS485 port, so it scores 2 on features.
Better on featuresRenogy Pro S1 120AhCarries an 85 W self-heating pad. $579.99Scores 10.0Redodo cites only CE, FCC, RoHS and UN38.3 for model DE-C14514N-11; no listing turned up in the Intertek, UL, LabTest, TÜV SÜD, TÜV Rheinland or SGS directories or on the California Energy Commission list in October 2026, so it scores 2 on verification.
Redodo's warranty policy gives its 24 V batteries of 20 Ah and up 5 years, with refunds after 12 months depreciated monthly but no prorated repair term, so it scores 6 on warranty and support.
$469.99 at redodopower.com.
Plain 24V 100Ah trolling battery
The Redodo 24V 100Ah (DE-C14514N-11) is Redodo's base 25.6 V, 100 Ah LiFePO4 battery for 24 V trolling motors, RVs and solar banks, in a 20.95 x 8.15 x 8.5 in case.
It suits a buyer who wants one 24 V battery for a 70 to 100 lb thrust trolling motor or a small 24 V solar bank kept above freezing, and who will not need phone monitoring, cold-weather charging protection or closed-loop inverter communication.
Strengths
- 56.2 Wh per pound at 45.58 lb
- IP65 protection class
- 100 A continuous charge and discharge
- Up to four in parallel and two in seriesto 51.2 V 400 Ah
- 5-year warranty with no prorated repair term
Drawbacks
- Surge given as 400 A for one second on the spec table500 A in the manual
- No end-of-life capacity published for the cycle rating
- No low-temperature charge cut-offthough charging is rated only from 32°F (0°C)
- No Bluetoothheating or CAN/RS485 port
- Two in series at mostagainst four in parallel
Specs
- Capacity2,000-2,999 Wh
- AC OutputNot applicable
- System Voltage24 V
- Panel PowerNot applicable
- Charge CurrentNot applicable
- Safety ListingNone verifiable
- Cell TypeNot applicable
- Low-Temp ChargingNone stated
- Warranty5 Years
- MonitoringNone
- Weight45.6 lb
At a glance
- 20.95 x 8.15 x 8.5 in
- M8 terminals, 16 mm bolts
- ABS flame-retardant case
- Insulating caps in the box
Redodo is the brand of Shenzhen Maicheng Technology Innovation Co., Ltd. of Shenzhen, China, which holds its US trademarks and FCC grants, and its press releases give 2020 as its founding year.
It sells direct from redodopower.com, which ships US orders from US warehouses, and through its own Amazon and Walmart seller accounts, with separate stores for Canada, Germany, France, Spain and Japan.
The Redodo 24V 100Ah (model DE-C14514N-11, store SKU R24V100-100-BASIC-8-A160N) is a 25.6 V, 100 Ah (2,560 Wh) LiFePO4 battery with prismatic cells and a 100 A BMS: 100 A maximum continuous charge and discharge, 2,560 W maximum continuous output and a 400 A one-second surge on the spec table (500 A for one second in its manual), 28.8 V ± 0.4 V charge voltage and a 20 A (0.2C) recommended charge current, charging from 32°F to 122°F (0 to 50°C) and discharging from -4°F to 140°F (-20 to 60°C), with internal resistance of 40 mΩ or less, an IP65 protection class, an ABS case and M8 terminals. It measures 20.95 x 8.15 x 8.5 in on the spec table (21 x 8.2 x 8.5 in, 532 x 207 x 215 mm, in the manual) and weighs 45.58 lb; the manual lists 16 mm M8 terminal bolts and insulating caps as included. Up to four connect in parallel and two in series (4P2S), to 51.2 V 400 Ah. It sells as a 2-pack for $930.58 and a 4-pack for $1,842.36, and with a 29.2 V 20 A charger for $637.17. One variant folds into this row: the 24V 100Ah Group 31 Trolling Motor Bluetooth (R24V100-100-BT-8-A105, $604.99 on its own page), adding Bluetooth and a low-temperature charge cut-off in a 13.11 x 6.93 x 9.45 in, 44.09 lb Group 31 case.
Questions answered from our data
Is Redodo good?We list 13 Redodo products and score 13 of them. Their overall scores run from 4.9 to 6.3, with a median of 5.7, against a median of 5.5 for all 127 products we score.
How much does a LiFePO4 battery cost?The 37 LiFePO4 batteries we list run from $220 to $1,089, with a median of $470.
Are LiFePO4 batteries UL listed?Three of the 37 LiFePO4 batteries we list carry a UL 1973-type listing we could look up by model.
Which LiFePO4 batteries can charge below freezing?Nine of the 37 LiFePO4 batteries we list heat their own cells so they can charge below freezing.
