LiTime 100A MPPT Bluetooth Solar Charge Controller
SVT Score, Upper
A 100 A MPPT controller for 12 to 48 V banks with Bluetooth built in, 98 percent peak conversion, a 150 V input and no load output.
$283
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
6.0 out of 10At 100 A it sits on the top rung for a charge controller, so it scores 10 on capacity.
LiTime's page and manual give 98 percent maximum conversion efficiency, so it scores 8 on efficiency.
Its 150 V maximum PV input is the 7 rung, so it scores 7 on operating range.
It has Bluetooth built in, charge parameters set in the app, and a remote temperature sensor, but no load output and no stated parallel operation, so it scores 6 on features.
No certifier directory lists this unit (Intertek, UL, CSA, LabTest, TÜV, SGS), and LiTime's manual shows only FCC, CE and RoHS marks, so it scores 2 on verification.
Better on verificationRenogy REGO 60A ControllerCSA's directory (file 302738) lists the RCC60REGO to UL 1741. $469.99Scores 8.0LiTime's US warranty policy gives charge controllers 3 years and its Canadian policy 2 years, and the shorter term is scored, so it scores 3 on warranty and support.
LiTime sets warranty terms by product, for the original buyer only, with proof of purchase.
Better on warranty & supportRenogy REGO 60A ControllerRenogy's warranty document lists it at 5 years for materials. $469.99Scores 6.0100 amps, Bluetooth, no load output

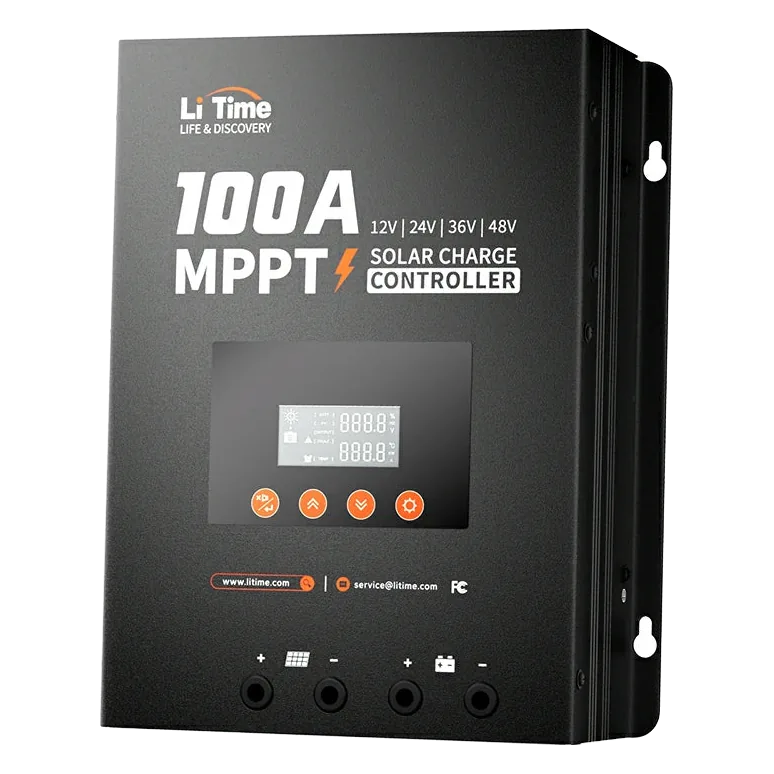

The L48V100A-MPPT-BT-E is LiTime's 100 A MPPT solar charge controller with Bluetooth for 12, 24, 36 and 48 V banks in cabins, RVs and off-grid homes.
It suits a buyer with up to 6,000 W of panels on a 48 V bank who wants phone monitoring, and who will not need a switched DC load or panel strings above 150 V. $282.99 at litime.com.
Strengths
- 100 A into 1224, 36 or 48 V banks
- 98 percent maximum conversion efficiency
- Up to 6,000 W of panels at 48 V
- Bluetooth app with password-locked settings
- Stops lithium charging below 32°F with its sensor
Drawbacks
- No DC load output
- 150 V maximum PV input
- IP21 case is for dryindoor mounting
- No parallel or networked operation stated
- 2-year term on LiTime Canada against 3 years on its US policy
Specs
- CapacityNot applicable
- AC OutputNot applicable
- System Voltage12/24/48 V auto
- Panel PowerNot applicable
- Charge Current100 A or more
- Safety ListingNone verifiable
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty2 Years
- MonitoringBluetooth built in
- Weight5.5 lb
At a glance
- 7.91 x 9.92 x 3.16 in
- Takes up to 4 AWG wire
- RS485 communication port
- Cooling fans with quiet mode
LiTime is the brand of Shenzhen Ampere Time Digital Energy Technology, founded in 2018 and renamed from Ampere Time in December 2022.
It sells direct from litime.com, which ships US orders from warehouses in Los Angeles and Dallas, and through its Amazon store and Walmart's marketplace.
The LiTime L48V100A-MPPT-BT-E is a 100 A MPPT solar charge controller for 12, 24, 36 and 48 V banks with Bluetooth built in, read and set through the "LiTime Solar" app behind a password. It takes up to 150 V of open-circuit panel voltage, tracks from battery voltage plus 3 V to 120 V, and accepts up to 1,500 W of panels at 12 V, 3,000 W at 24 V, 4,500 W at 36 V and 6,000 W at 48 V, charging batteries from 9 V to 64 V. LiTime rates it at 98 percent maximum conversion efficiency and above 99.9 percent tracking efficiency, with a no-load draw under 10 mA at 12 V and under 4 mA at 48 V. It ships set to 12 V LiFePO4; selecting the LI type locks the system voltage, while lead-acid banks can be detected automatically. A remote temperature sensor in the box stops lithium charging below 32°F (0°C) and resumes above 41°F (5°C), a function that is off by default. It has no DC load output. The IP21 case has a cast aluminium heatsink and cooling fans with a timed quiet mode, an LCD with four buttons and an RS485 communication port, operates from -4°F to 131°F, measures 7.91 x 9.92 x 3.16 in, weighs about 5.49 lb and takes up to 4 AWG wire; the box holds the sensor, a magic sticker, four screws, four plastic anchors, four copper wire connectors and heat-shrink tubes. It sells at $282.99 with LiTime's 3-year charge controller warranty.
Compared in
Questions answered from our data
Is LiTime good?We list 25 LiTime products and score 25 of them. Their overall scores run from 4.2 to 6.3, with a median of 5.4, against a median of 5.4 for all 83 products we score.
How much does an MPPT charge controller cost?The 11 MPPT charge controllers we list run from $90 to $702, with a median of $250.
Are MPPT charge controllers UL listed?Two of the 11 MPPT charge controllers we list carry a UL 1741-type listing we could look up by model.
Which MPPT charge controllers have Bluetooth?10 of the 11 MPPT charge controllers we list offer Bluetooth monitoring, built in or as the maker's add-on.
