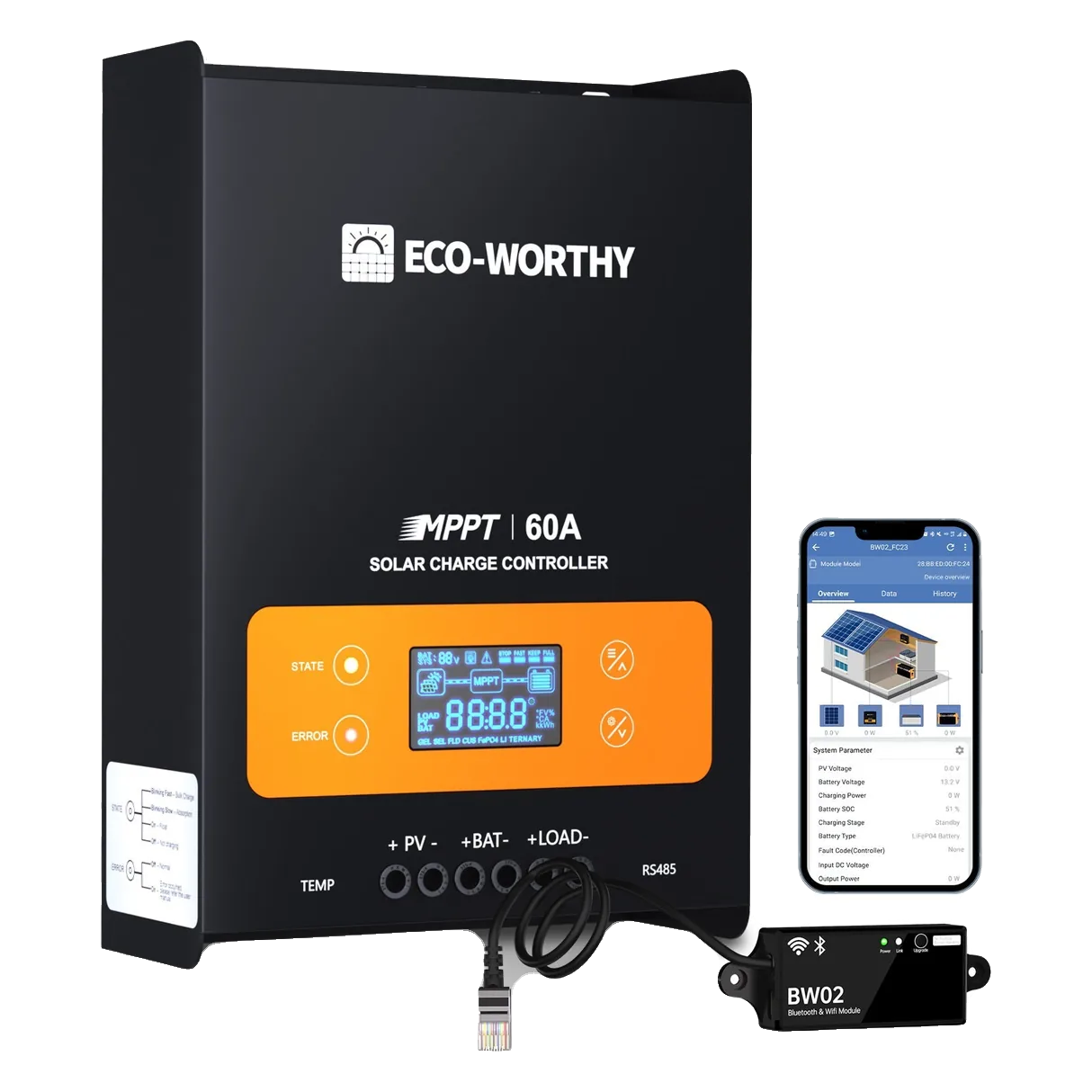

ECO-WORTHY 60A 12/24/36/48V MPPT Solar Charge Controller
SVT Score, Lower
ECO-WORTHY’s 60 A MPPT controller for 12 to 48 V banks, with a 150 V PV limit, a 30 A load output and a plug-in Bluetooth and WiFi module.
$190
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.0 out of 10At 60 A it sits on the 8 rung for a charge controller, so it scores 8 on capacity.
ECO-WORTHY's spec table gives 98 percent peak charge efficiency but its product page text gives 97 percent, and the lower figure is scored, so it scores 6 on efficiency.
Its manual gives a 150 V maximum PV open-circuit voltage, the 7 rung, so it scores 7 on operating range.
It has a 30 A load output and a user-defined charge profile, but Bluetooth and WiFi come through a plug-in RJ45 module, linking several controllers needs ECO-WORTHY's optional remote meter, and no temperature sensor is listed in the box, so it scores 6 on features.
No certifier directory (Intertek, UL Product iQ or Certipedia) lists this controller under ECO-WORTHY or Xiamen Eco-Sources, and Eco-Worthy's page and manual name no safety listing, so it scores 2 on verification.
Better on verificationRenogy Rover Li 40A Controller$205.99Scores 4.0ECO-WORTHY's warranty policy gives charge controllers 1 year, so it scores 1 on warranty and support.
Eco-Worthy's warranty page gives most products 1 year and its 12 and 24 V batteries 3 years, for the original buyer only, against 10 years on its 48 V server-rack and PowerMega batteries and 2 years on its all-in-one inverters, both tiered by age.
Better on warranty & supportRenogy Rover Li 40A ControllerRenogy's product page. $205.99Scores 4.0Load output and 150 V input
The ECOMPPT60A is ECO-WORTHY's 60 A MPPT solar charge controller for 12, 24, 36 and 48 V battery banks in RVs, cabins and off-grid sheds.
It suits a buyer with up to 3,120 W of panels on a 48 V bank who wants a switched load output for lights and phone monitoring at a low price, and who will not need more than a year of warranty cover or panel strings above 150 V. $189.99 at eco-worthy.com.
Strengths
- 60 A into 1224, 36 or 48 V banks
- 30 A DC load output with dusk and timer modes
- User-definedCUS) charge profile
- No-load loss of 0.5 W to 1.2 W
- Up to 3,120 W of panels at 48 V
Drawbacks
- Peak efficiency 98 percent on the spec table97 percent on the page
- Bluetooth and WiFi through a plug-in RJ45 module
- No temperature sensor listed in the box
- IP21 enclosure with a cooling fan
- 1-year warranty
Specs
- CapacityNot applicable
- AC OutputNot applicable
- System Voltage12/24/48 V auto
- Panel PowerNot applicable
- Charge Current60-79 A
- Safety ListingNone verifiable
- Cell TypeNot applicable
- Low-Temp ChargingNot applicable
- Warranty1 Year
- MonitoringBluetooth add-on
- Weight4.3 lb
At a glance
- 240 x 166 x 65 mm case
- Takes up to 20 mm² wire
- RS485 link for remote meter
ECO-WORTHY is the brand of Xiamen Eco-Sources Technology Co., Ltd of Xiamen, China, which its own pages date to 2007, with a US company, Eco-Sources USA, Inc., in Springfield, Missouri.
It sells direct from eco-worthy.com, which ships US orders from a US warehouse, and through its Amazon and eBay stores and dealers such as Off Grid Stores and Current Connected.
The ECOMPPT60A is ECO-WORTHY's 60 A MPPT solar charge controller for 12, 24, 36 and 48 V battery banks, auto-detecting 12, 24 and 48 V at power-up. Its manual gives a 150 V maximum PV open-circuit voltage and rated input of 780 W at 12 V, 1,560 W at 24 V, 2,340 W at 36 V and 3,120 W at 48 V. It has a 30 A DC load output with manual, dual-period timer, light-controlled and light-plus-timer modes. Charge profiles cover LiFePO4 (12, 24 and 48 V presets), AGM, sealed, gel and flooded batteries, plus a user-defined (CUS) profile. ECO-WORTHY's spec table gives 98 percent peak charge efficiency and 0.5 W to 1.2 W no-load loss; its product page text gives 97 percent, and the manual gives at least 99.5 percent MPPT efficiency. An 8-pin RJ45 RS485 port takes ECO-WORTHY's plug-in Bluetooth and WiFi module and its remote meter, which links up to four controllers on one battery bank; there is also a temperature sensor port. Fan cooled, IP21, 240 x 166 x 65 mm (9.45 x 6.54 x 2.56 in), 1.96 kg (4.3 lb), terminals for wire up to 20 mm². ECO-WORTHY's box list names only the controller, while its feature text says it comes equipped with the Bluetooth and WiFi module.
