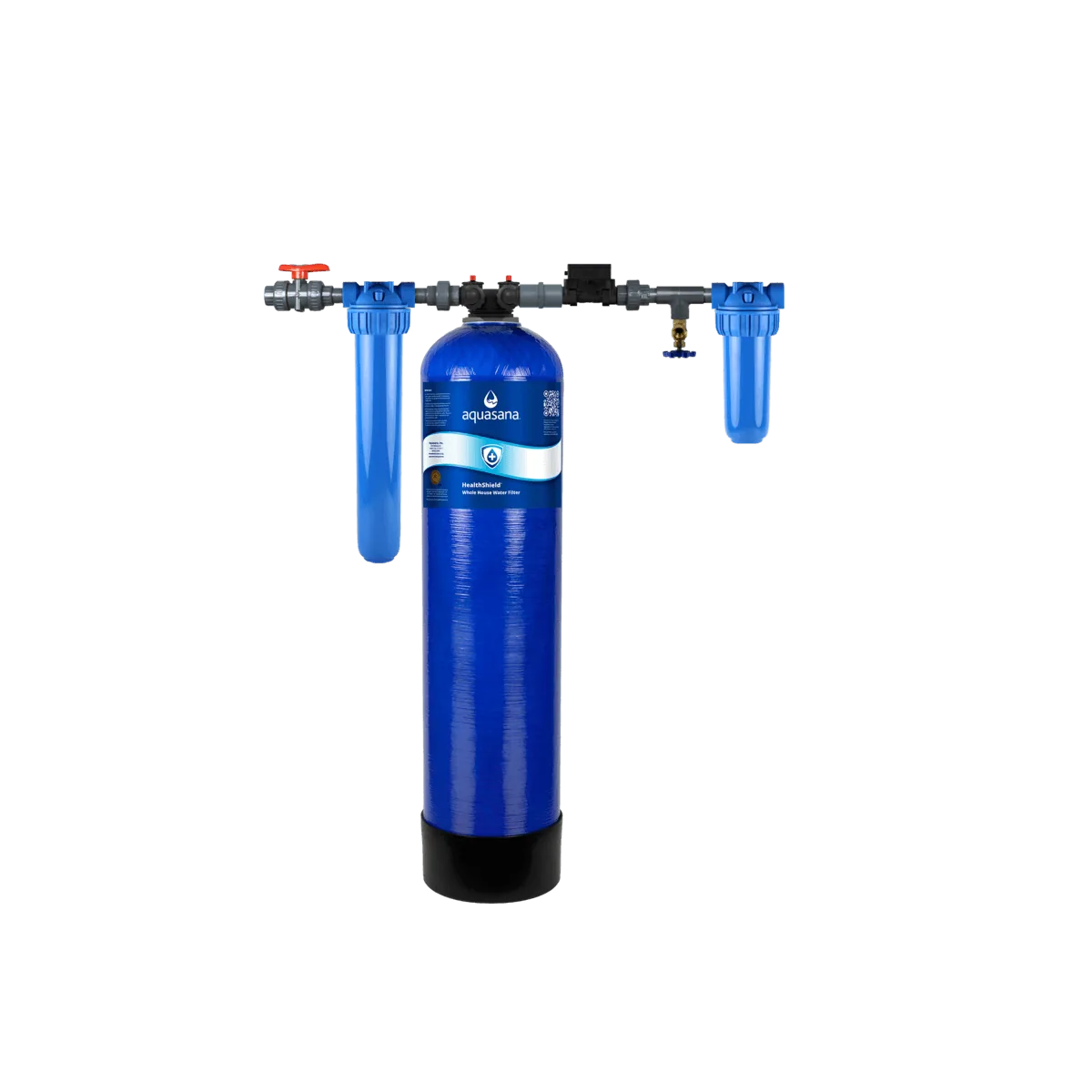

Aquasana HealthShield Whole House Water Filter, 165,000 Gallons
- 5-10 GPM
- Filter life under 6 months
- 2 certifications
- 2-year warranty
SVT Score, Mid
A single-tank whole house filter certified by WQA for PFAS and VOC reduction, rated for 165,000 gallons or about two years.
$4,198
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.9 out of 10Strengths
- Certified for BPA and ibuprofen too
- Display tracks flow and remaining gallons
- Bypass valve comes in the box
- No drain line or backwash
- Certified PFAS and VOC reduction at every tap
Drawbacks
- Short tank life before replacement
- Short warranty on the tank
- Chlorine and chloramine figures are the maker's own
- Certified listing requires low aluminum in the supply
- Lowest rated flow among the brand's whole house systems
- Needs a power outlet for the display
Certified PFAS removal for the whole house, but the tank is short-lived
Specs
- Filtration TypeGranular Activated Carbon, Sediment
- CertificationsNSF/ANSI 401, NSF/ANSI 53
- Warranty2 Years
- Connection Size1 in, 3/4 in
- Housing MaterialComposite
- Flow Rate / Water Pressure5-10 GPM
- Filter Lifespan / CapacityUnder 6 months
- Dimensions57" H x 12" dia (tank)
- Contaminant RemovalChloramineChlorinePFASSedimentPharmaceuticalsVOCs
At a glance
- Single-tank design
- Touchscreen gallon counter
- PFAS-free thread tape
Aquasana, Inc. is a Haltom City, Texas company that A. O. Smith acquired in August 2016.
It sells whole house, under-sink, countertop and shower systems through its own store, its Amazon store, Home Depot, Lowe's and Walmart, where it is its own marketplace seller.
The Aquasana HealthShield (WH-HS) is a single-tank whole house carbon filter built for PFAS and VOC reduction, rated for 165,000 gallons or about two years.
WQA lists the WH-HS under NSF/ANSI 53 for PFOA, PFOS, PFNA, PFHxS, PFHpA and VOCs (as chloroform) at 5.7 GPM over 165,000 gallons, with a condition that influent aluminum is reduced before treatment.
Aquasana's data sheet adds NSF/ANSI 401 claims for BPA and ibuprofen at 94.7% and CSA B483.1, and lists chlorine at 97.4% and chloramine at 97.49% from its own testing, noting WQA did not evaluate them. Rated flow is 5.7 GPM with an 11.2 GPM peak, at 25 to 100 psi and 40 to 100 F.
The tank is 57 inches tall and 12 inches wide, and a performance indicator display needs a 120V outlet. The box holds the tank with its bypass valve, a 20 inch pre-filter changed every 2 months, a 10 inch post-filter changed every 6 months and the PVC install kit.
A Max Flow UV filter, a tall salt-free conditioner, a pro-grade bypass kit and a low-maintenance pre-filter are sold as add-ons.
Questions answered from our data

Is Aquasana good?We list 18 Aquasana products and score 18 of them. Their overall scores run from 3.5 to 6.4, with a median of 4.4, against a median of 4.9 for all 286 products we score.
How much does a whole house water filter cost?The 55 whole house water filters we list run from $110 to $8,626, with a median of $1,117.
Do water filters remove PFAS?84 of the 296 systems we list claim to reduce PFAS.
What does Aquasana filter out?Across the 18 Aquasana systems we list, the makers claim reduction of 31 contaminants.
