US Water Systems Matrixx Hybrid Filter and Smart Water Softener
- 10-15 GPM
- NSF/ANSI 61
- 10-year warranty
SVT Score, Upper
A single-tank softener with a carbon bed on top for chlorine and chloramine, for city homes without room for two tanks.
$1,746
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.5 out of 10Strengths
- Catalytic carbon targets chloramine
- Saves floor space over a two-tank setup
- Long warranty on the valve and electronics
- Phone app shows water use and salt level
- Softening and chlorine reduction in one tank
Drawbacks
- No performance certification for the system
- Media is poured into the tank during install
- Carbon and resin are serviced together
- Manual and store page differ on lifetime cover
- Salt refills and a drain line are part of ownership
A space-saving softener and chlorine filter in one tank, but uncertified
Specs
- CertificationsNSF/ANSI 61
- Warranty10 Years
- Connection Size1 in
- Housing MaterialComposite
- Flow Rate / Water Pressure10-15 GPM
- Dimensions10" x 54" tank (150 model)
- Weight189 lb
- Country of OriginUSA
- Filtration TypeCatalytic CarbonGranular Activated CarbonIon Exchange Softener
- Contaminant RemovalChloramineChlorineTaste and OdorHardness
Not published by US Water Systems: filter lifespan / capacity.
At a glance
- Split Vortech media tank
- Funnel included for media
- Optional Magna pre-filter
US Water Systems, Inc. is a family company based in Plainfield, Indiana, in business since 1995.
It sells whole house filters, iron filters, softeners and commercial reverse osmosis units through its own store, and cartridges through its Amazon store.

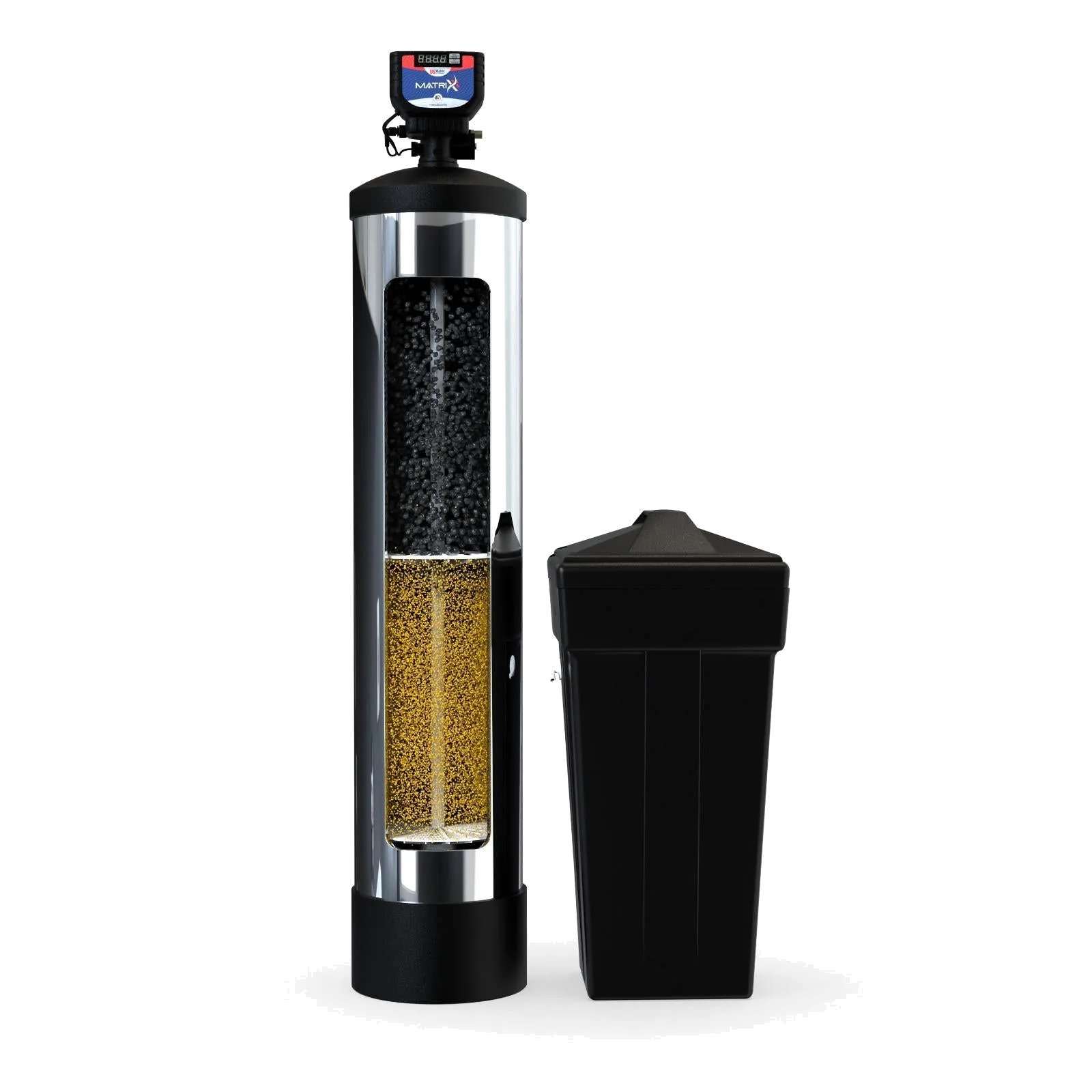

The Matrixx-Hybrid Filter and Smart Water Softener puts a carbon bed above a softening resin bed in one split Vortech tank under a 1 in metered Bluetooth valve.
The MXH-150 size has a 10 x 54 in tank holding 1 cu ft of 10% crosslinked resin and 0.5 cu ft of carbon, 35,000 grains maximum capacity and a 10 GPM service flow with 12 GPM peak in its manual.
The store page names coconut shell and catalytic carbon for chlorine, chloramine and VOCs, and a 15 x 17 x 36 in brine tank holding 275 lb of salt. The media is poured into the tank on site with the included funnel, and a 5-micron Magna pre-filter is an option at checkout.
The MXH-250 and MXH-300 sizes rate 15 and 20 GPM. The manual's warranty gives lifetime cover on the media tank and brine tank and 10 years on the valve and electronics, with registration within 30 days.
