US Water Systems Bodyguard Water Filter and Matrixx Salt-Based Softener Combo
- 5-10 GPM
- NSF/ANSI 61
- 5-year warranty
SVT Score, Upper
A city-water package of a Bodyguard carbon tank, a 5-micron pre-filter and a Matrixx salt softener, sold in 10, 15 and 20 GPM sizes.
$2,180
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.4 out of 10Strengths
- Catalytic carbon targets chloramine
- Bodyguard tank needs no power or drain
- Long warranty on the valve and electronics
- Pre-filter cartridge has a double O-ring seal
- Carbon stage protects the softener resin from chlorine
Drawbacks
- No performance certification for either tank
- Two tanks plus a brine tank take floor space
- Filter media warranty is shorter than the valve's
- Media is poured into the tanks during install
- Salt refills and a drain line are part of ownership
A complete city-water filter and softener pair, but large and uncertified
Specs
- CertificationsNSF/ANSI 61
- Warranty5 Years
- Connection Size1 in
- Housing MaterialComposite
- Flow Rate / Water Pressure5-10 GPM
- Dimensions9" x 48" tanks (100 configuration)
- Weight183 lb
- Country of OriginUSA
- Filtration TypeCatalytic CarbonGranular Activated CarbonIon Exchange SoftenerKDFSediment
- Contaminant RemovalChloramineChlorineTaste and OdorHardness
Not published by US Water Systems: filter lifespan / capacity.
At a glance
- Upflow Bodyguard tank
- Copper-zinc KDF media
- Chrome tank jackets
US Water Systems, Inc. is a family company based in Plainfield, Indiana, in business since 1995.
It sells whole house filters, iron filters, softeners and commercial reverse osmosis units through its own store, and cartridges through its Amazon store.

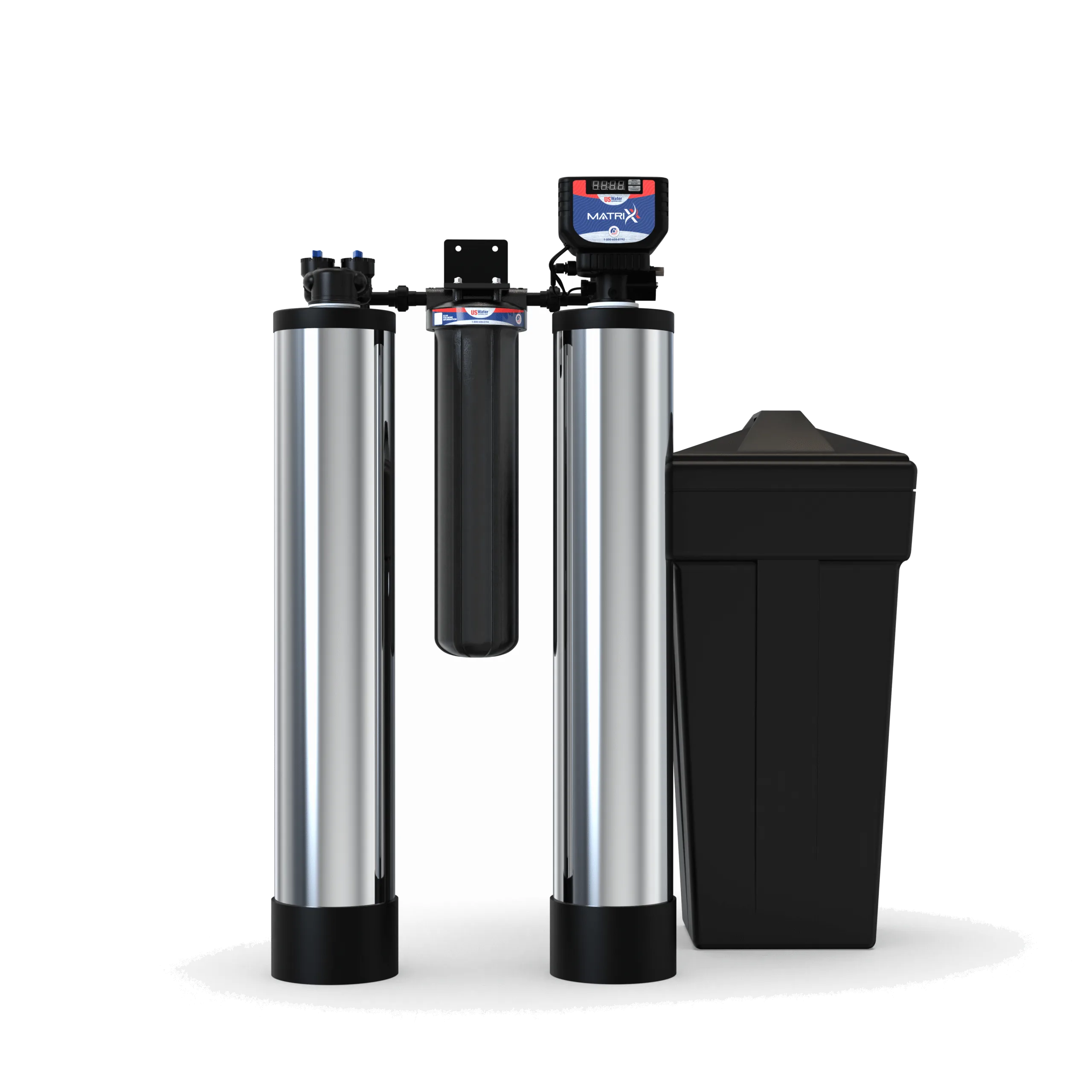

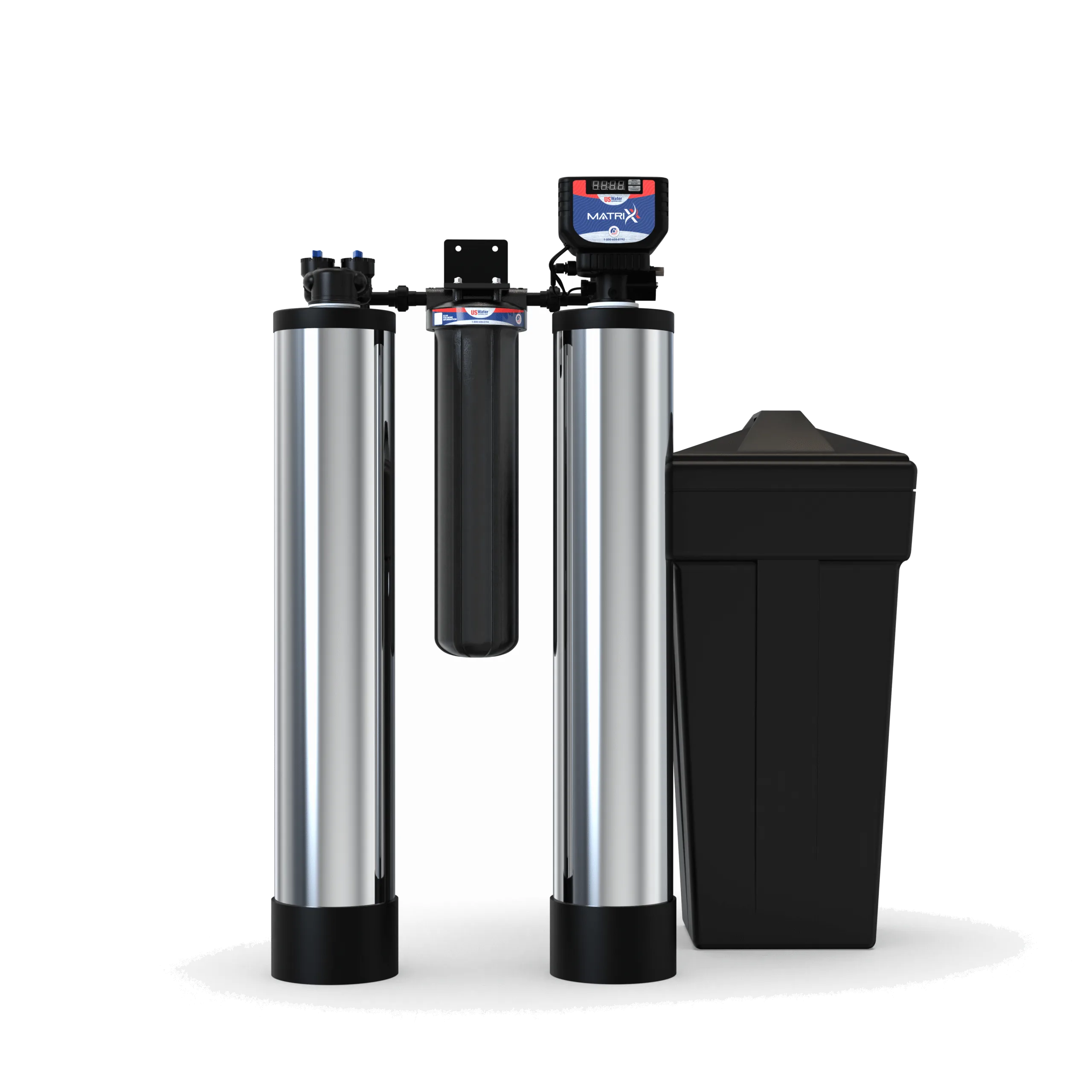

The Bodyguard Water Filter and Matrixx Salt Based Water Softener System pairs an upflow Bodyguard carbon tank and a Magna 5-micron pre-filter with a Matrixx metered softener and brine tank.
In the 10 GPM size the Bodyguard is a 9 x 48 in tank of quartz gravel, KDF-55, coconut shell carbon and catalytic carbon rated 8 GPM continuous and 10 GPM maximum, and the softener is the 9 x 48 in MXX-100.
The box holds two chrome tanks, resin and carbon, the smart valve, bypass valves and connectors, a funnel, the brine tank and tubing, and the Magna filter with a cartridge. The Bodyguard manual sets the Magna cartridge at 6 to 12 months and the carbon media at 5 to 7 years.
The Bodyguard tank and head carry a lifetime warranty and its media 5 years, and the softener's valve and electronics are covered for 10 years.
