BLUETTI RV5 10kWh RV Kit With Epanel And Epad

48 V system
6,000 Wh or more
4,000-5,999 W output
Self-heating

SVT Score, Top

Usability7.1/10Social4.8/10The SVT Score is placed on its category's range

Versus

SVT SCORESRead review

A 10 kWh RV power system: BLUETTI’s 5,000 W RV5 hub with built-in solar, alternator and shore charging, two self-heating B4810 batteries, a smart distribution panel and a touchscreen.

$5,499

We may earn a commission if you buy through this link. It never affects our scores. How this works

SKU: RV5-9-01-SPFUS-00 Category: Integrated Power Systems Brand: BLUETTI

Usability

7.1 out of 10

Capacity82 x B4810 = 10,240 Wh, on the 10,000 to 14,999 Wh rung

Battery: 51.2 V, 100 Ah each; up to 24 B4810 in parallel, with Edock boxes above eight

Operating Range55,000 W inverter on 10.24 kWh is 488 W per kWh, on the 400 to 699 rung

Surge: 10,000 W on the product page, 2.0 times continuous; the manual gives none
Derating: the hub derates its load between 113 and 131 °F

Lifespan86,000 cycles to 70 percent; one rung down for the 70 percent end point

Test: rated at 0.5C charge and discharge at 77 °F; depth of discharge not stated

Features10MPPT, alternator, shore charger, app, transfer, expansion: all six

Solar: two inputs of 1,800 W and 50 A each, 12 to 50 V, 3,600 W total
Alternator: PV2 takes 600 W from a 12 V or 1,200 W from a 24 V starter system
Shore: 120 V at up to 42 A, 5,000 W in Turbo mode, plus a 208/240 V EV charging input
Transfer: UPS switchover within 20 ms; bypass carries up to 6,000 W and 50 A
Distribution: the Epanel serves up to 20 DC and 8 AC circuits, 6 and 4 of them app-controlled

Verification6every power component ETL Listed by model; no UL 9540 listing for the kit as a system.

Searched: Intertek UL CEC TÜV SÜD Certipedia SGS
Record: Intertek ETL, UL 458, RV5, BLUETTI POWER INC
Record: Intertek ETL, UL 1741, RV5, BLUETTI POWER INC
Record: Intertek ETL, CAN/CSA-C22.2 No. 107.1, RV5, BLUETTI POWER INC

Warranty & Support660 months on the RV5 and the B4810 in BLUETTI's warranty table

Epanel: not named in BLUETTI's warranty table; its Amazon listing gives the RV5, Epanel and B4810 a 5-year repair service
Accessories: BLUETTI's warranty table gives accessories and cables 12 months

Efficiency

Not scored: no peak efficiency or no-load draw in the RV5 manual or spec table
Blog: BLUETTI's own buying guide cites about 94 percent and a 7 W standby draw, figures absent from the manual

Price

List: $5,499.00 at bluettipower.com

Summary

Long runtime, but Solar input held low

What it is: a 48 V RV power system of BLUETTI's 5,000 W RV5 hub, two 5.12 kWh B4810 batteries, a distribution panel and a touchscreen
The trade-off: long runtime and every charging source in one system, but solar strings are held to 50 V and the AC output is single-leg
Not checked: inverter efficiency and idle draw, which the RV5 manual does not publish, and which wiring packs ship with this kit
Look elsewhere for: split-phase or 50 A pass-through, high-voltage solar strings, or third-party batteries with their own BMS

Strengths

Solar, alternatorshore and generator charging in one hub
Enough storage for the hub's full inverter output
Smart distribution panel with app-switched circuits
Self-heatingwater-resistant batteries
Labelled wiring that owners found easy to install

Show 1 moreShow fewer

Drawbacks

No published inverter efficiency or idle draw
Low solar input voltage limits panel strings
Single-leg AC output with no split-phase
Owners report no ready circuit for large DC loads
Owners report third-party batteries are hard to use

Show 1 moreShow fewer

Social score

4.8 out of 10

RedditProduct-line6 out of 10

Scope: few Reddit owner threads outside BLUETTI's own subreddit discuss the RV5, and none names the battery count
Install: an r/VanLife owner who had fitted the RV5 and its batteries said the system seriously simplified the build, with clear instructions and marked cables and panels (May 2026)
Value: a commenter in that thread who had built systems from other makers called it quality stuff and priced right (May 2026)

GoogleProduct-line4 out of 10

Batteries: on DIY Solar Power Forum, members said BLUETTI advises its own B4810 or batteries without a BMS, and one owner needed a resistor pre-charge to stop the RV5 tripping a third-party BMS (January 2026)
Faults: another member there reported E074 BMS-fault and E086 low-temperature warnings with a third-party battery and told readers not to buy it (by January 2026)
Limits: members there criticised the 50 V solar ceiling and the single-leg AC output with no 50 A pass-through (October 2025 to January 2026)
DC loads: a Ford Transit USA Forum owner with two B4810 found no Epanel circuit for a 63 A 12 V air conditioner, and BLUETTI support said to wire a 48 V unit to the battery terminals (April 2026)

YouTubeProduct-line6 out of 10

HOBOTECH: tested the RV5 with one B4810, with chapters on battery capacity, idle draw, inverter output and UPS tests and segments titled Why 50v MPPT is TOO LOW and The Battery Capacity Issue (November 2025, 128,000 views)
Disclosure: HOBOTECH's description carries a gohobo.io link, the discount code HOBORV10 and affiliate links
Nomad Brad: read 587 W and 585 W from two solar arrays on the Epad, quoted the two-battery kit at $5,499 and praised alternator charging with no extra device (2025, about 45,000 views)
Disclosure: Nomad Brad says BLUETTI sent the system free of charge, with no payment, script or commission

AmazonProduct-line3 out of 10

Listing: BLUETTI's Amazon US Basic Kit (B0G13DFFL5, RV5, one B4810, wiring set) shares one rating file with its RV5 hub listing: 3.2 from 3 ratings, 42 percent five-star, 58 percent two-star (October 2026)

User reviewsNot scored

The retailer pool is blank: no US retailer listing of the RV5 or the B4810 carries product reviews (October 2026).

Trustpilot

Trustpilot rates BLUETTI US (bluettipower.com) 4.5 from 752 reviews on a page claimed in November 2024 that has not invited reviews recently, 79 percent five-star and 7 percent one-star (October 2026).

Track record

The BBB rates Bluetti Power Inc of Las Vegas, Nevada an F, not accredited, with 36 complaints in three years (October 2026).
No CPSC or Health Canada recall names any BLUETTI product, its solar panels, LiFePO4 batteries, D40 charger and RV5 system included, searched in October 2026.

Not countedExcluded

Not counted in any pool: bluettipower.com's own reviews and entries reposted from it, Home Depot Reviewer Program entries, r/bluetti, which carries BLUETTI's official links, BLUETTI's YouTube channels and Facebook pages, and its staff posts, all first-party.
Also not counted: BLUETTI's affiliate and creator programs and their discount codes, reviews flagged Incentivized at Walmart, and anything gathered in BLUETTI promotions.

Summary

Brand-level

4.5 on Trustpilot, an F from The BBB

Specs

Capacity6,000 Wh or more
AC Output4,000-5,999 W
System Voltage48 V
Panel PowerNot applicable
Charge CurrentNot applicable
Safety ListingCSA 107.1 listed, UL 458 listed
Cell TypeNot applicable
Low-Temp ChargingSelf-heating
Warranty5 Years
MonitoringBluetooth built in

Show 4 moreShow fewer

Not published by BLUETTI: weight.

At a glance

Hub 17.72 x 19.69 x 6.30 in
Epanel: 20 DC, 8 AC circuits
Epad touchscreen in the box
12/24 V DC out, up to 100 A

Company

BLUETTI Power Inc., a Nevada corporation based in Las Vegas, sells BLUETTI in the US, and the brand belongs to Shenzhen PowerOak Newener Co., Ltd. of Shenzhen, China.

Where it sells

It sells its panels, batteries and RV systems with a cart at bluettipower.com and on Amazon US through its own store, and its panels are listed at Home Depot, Lowe's, Best Buy and Walmart, partly through BLUETTI's own marketplace stores.

Description

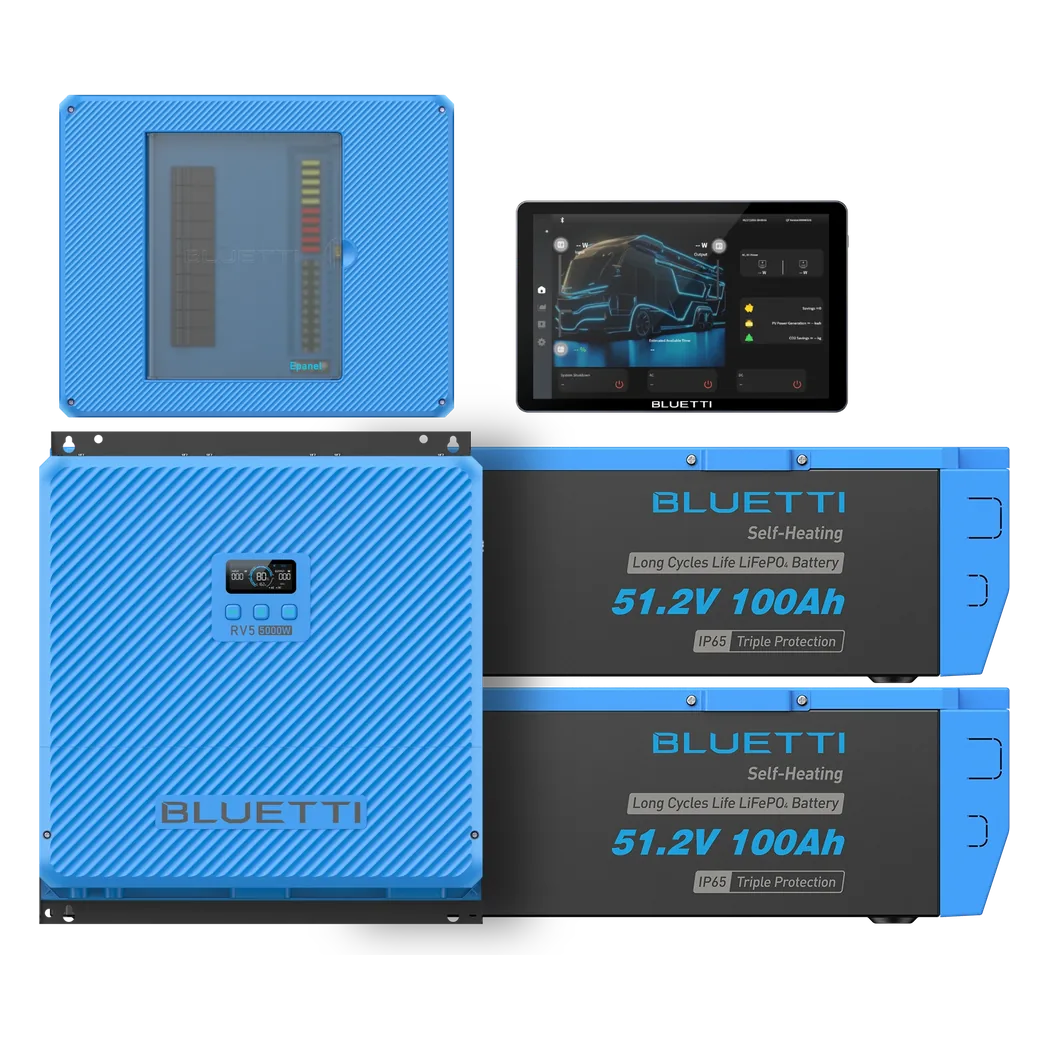

The BLUETTI 10kWh RV Kit (store SKU RV5-9-01-SPFUS-00) is a 48 V RV power system made of BLUETTI's RV5 Power Hub, two B4810 LiFePO4 batteries, the Epanel smart distribution panel and the Epad touchscreen, storing 10,240 Wh in all.

The RV5 Power Hub (model RV5 in its manual) combines a pure sine inverter rated 5,000 W at 120 V, 60 Hz and 42 A, two MPPT solar inputs, vehicle charging, an AC charger and a 48 V to 12/24 V DC step-down; BLUETTI's page gives 10,000 W surge.

Each solar input, PV1 and PV2, takes 12 to 50 V at up to 50 A and 1,800 W, 3,600 W in all, and PV2 can instead charge from a vehicle's starter system at 600 W (12 V) or 1,200 W (24 V).

Its AC input takes 120 V shore or generator power at up to 42 A, set in the app from 12 A up to 50 A, charging at up to 5,000 W in Turbo mode, or 208/240 V EV charging at 22 A. When AC input is present the hub passes it through in bypass at up to 6,000 W and 50 A, and its UPS switchover takes 20 ms or less.

The DC output gives 12 V at 100 A (1,360 W) or 24 V at 60 A (1,620 W), and Bluetooth and Wi-Fi link the hub to the BLUETTI app. The hub runs from -4 to 113 °F (load derates up to 131 °F), measures 17.72 x 19.69 x 6.30 in (450 x 500 x 159.9 mm) and weighs about 30.86 lb (14 kg); it cannot be paralleled.

Each B4810 is a 51.2 V, 100 Ah (5,120 Wh) LiFePO4 battery with self-heating, charging and discharging from -4 to 131 °F, 100 A maximum discharge (200 A for 30 s), IP65, 23.94 x 14.96 x 5.71 in and about 101.4 lb (46 kg).

BLUETTI rates the B4810 for 6,000 cycles to 70 percent capacity at 0.5C and 77 °F, and up to 24 connect in parallel, with Edock boxes above eight. The RV5 manual recommends two B4810 batteries for the hub's full output.

The Epanel distributes power to up to 20 DC circuits (6 app-controlled) and 8 AC circuits (4 app-controlled), and the Epad is a touchscreen that shows energy flow, battery state and charging inputs.

BLUETTI's warranty table gives the RV5 and the B4810 60 months each and accessories 12 months, and BLUETTI's Amazon listing says the RV5, Epanel and B4810 carry a 5-year repair service. It sells at $5,499.00 on bluettipower.com, the only 10 kWh configuration listed; the Epanel alone is $499.00.
