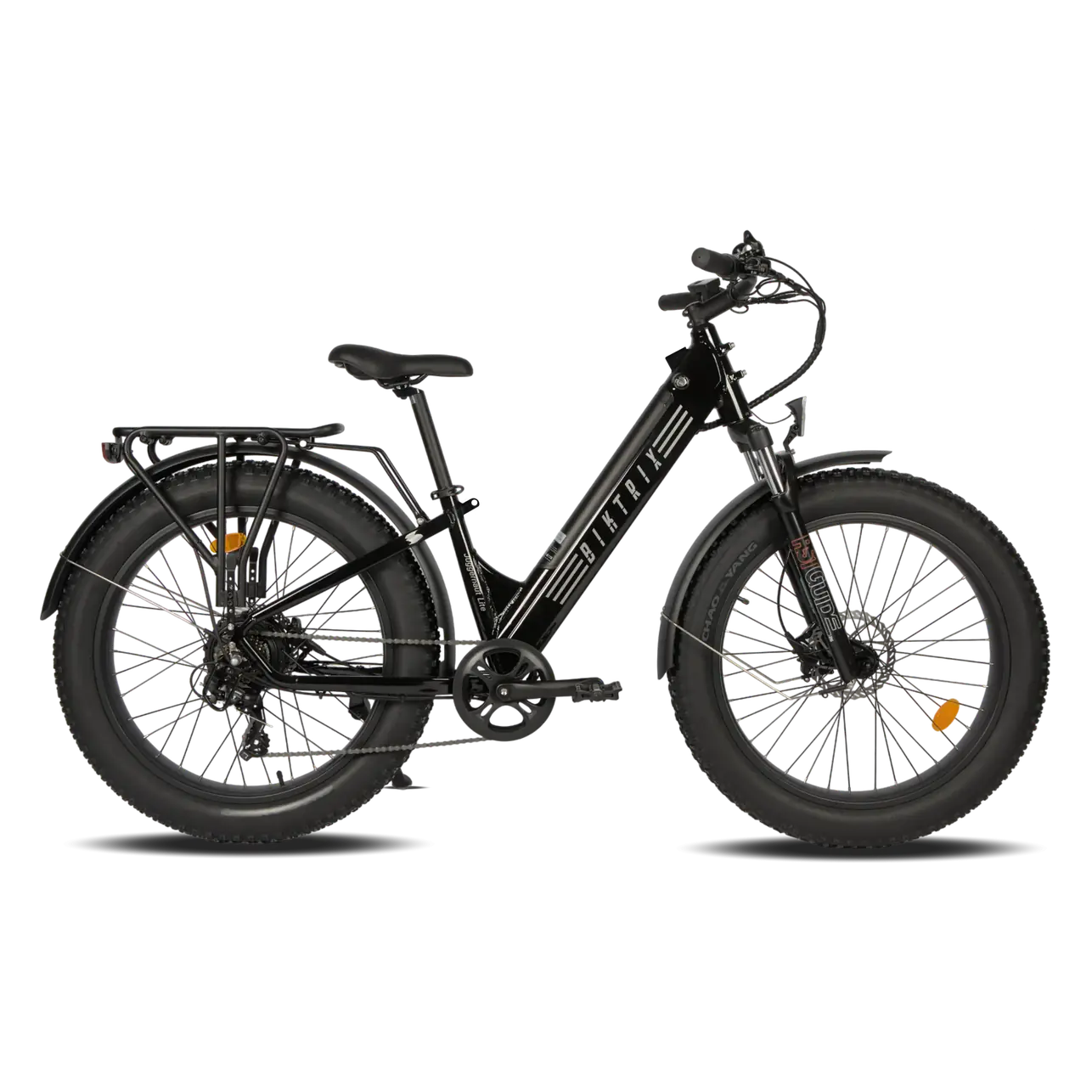

Biktrix Juggernaut Lite Fat Tire Electric Bike
- Class 2
- 601-800 Wh
- 26-40 mi claimed
- 251-300 lb max load
SVT Score, Lower
A 750 W hub-drive fat tire e-bike with a removable battery, hydraulic brakes, a rack and fenders, in step-thru or step-over frames.
$2,299
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
4.5 out of 10- Rating: spec table 48 V, 13.2 Ah, 634 Wh; header 624 Wh scored
Better on batteryPuckipuppy GoldenR Pro Dual-Motor E-BikeThe GoldenR Pro carries a 960 Wh battery. $1,999.99Scores 6.0- Class: Class 1 or Class 2 only, per Biktrix's help center
Better on motorHimiway D5 Pro e-bike500 W mid-drive is rated at 130 Nm of torque. $2,599Scores 10.0- Searched: Certipedia Intertek UL SGS TÜV SÜD CPSC Health Canada
Better on verificationPuckipuppy GoldenR Pro Dual-Motor E-Bike$1,999.99Scores 6.0
Strengths
- Battery lifts out to charge indoors
- Rack and fenders come fitted
- Step-through frame option
- Throttle makes pedaling optional
- Hydraulic brakes stop with confidence
Drawbacks
- Cadence-only assist
- Heavy to lift
- Battery capacity stated two ways
- No UL safety listing found
- Smaller battery than other fat bikes in the line
A simple fat tire cruiser for shorter rides, with a small battery
Specs
- TypeFat Tire
- E-Bike ClassClass 2
- Battery601-800 Wh
- MotorHub
- Top SpeedUp to 20 mph
- Claimed Range26-40 mi
- Weight71-85 lb
- Max Rider Load251-300 lb
- BrakesHydraulic disc
- SuspensionFront
- FoldingDoes not fold
- CertificationsNone verifiable
- Warranty2 Years
At a glance
- Chaoyang tires
- Shimano Tourney gears
- Two frame heights
The BIKTRIX US trademark is registered to Biktrix Enterprises Inc. of Saskatoon, Saskatchewan, which receives legal notices under the US terms.
- Biktrix e-bikes are sold in the US by Biktrix USA Inc., a Delaware corporation operating as Biktrix Electric Bikes.
- The bikes are sold through biktrix.com in US dollars and ship to the US by FedEx from Saskatoon, free on orders over $1,000.
- The e-bikes it sells run from a 350 W step-thru commuter to carbon full-suspension fat bikes.
- None of Walmart, Best Buy, Target, Costco, Dick's Sporting Goods, REI, Home Depot and Lowe's sells Biktrix e-bikes, either as the seller or through a marketplace listing; Biktrix sells its e-bikes through its own store (October 2026).
The Biktrix Juggernaut Lite is a fat tire e-bike with a 750 W rear hub motor rated at 70 Nm and a removable 48 V battery the store header lists at 624 Wh. It has dual-piston hydraulic disc brakes with 180 mm rotors, a 75 mm RST spring fork, a cadence sensor, Chaoyang 4 in fat tires and a Shimano Tourney drivetrain.
It comes as a step-thru or step-over frame, small with 24x4 tires or large with 26x4 tires, all at $2,299.00. Biktrix lists 63.9 lb without the battery and a 300 lb load rating. It has integrated headlight and taillight, a thumb throttle, a rack and front and rear fenders.
Biktrix's help center lists it for Class 1 or Class 2 only, and the store claims about 40 miles of range.
