Aquasana HealthShield Whole House Water Filter with Max Flow UV, 165,000 Gallons
- 5-10 GPM
- Filter life under 6 months
- 3 certifications
- 2-year warranty
SVT Score, Lower
HealthShield with the Max Flow UV filter: WQA-certified PFAS and VOC reduction plus NSF/ANSI 55 Class B UV for wells.
$5,796
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
5.7 out of 10Strengths
- UV stage certified for disinfection
- Stainless steel UV chamber
- Display tracks flow and remaining gallons
- Bypass valve comes in the box
- Certified PFAS and VOC reduction at every tap
Drawbacks
- Short tank life before replacement
- Short warranty on the tank
- UV lamp is a yearly replacement
- Needs power for the UV and the display
- Chlorine and chloramine figures are the maker's own
Certified PFAS removal plus UV for wells, at a steep price
Specs
- Filtration TypeGranular Activated Carbon, Sediment, UV
- CertificationsNSF/ANSI 55, NSF/ANSI 401, NSF/ANSI 53
- Warranty2 Years
- Connection Size1 in, 3/4 in
- Housing MaterialComposite
- Flow Rate / Water Pressure5-10 GPM
- Filter Lifespan / CapacityUnder 6 months
- Dimensions57" H x 12" dia (tank) / 15" H x 4" dia (UV)
- Contaminant RemovalChloramineChlorinePFASSedimentBacteriaPharmaceuticalsVirusesVOCs
At a glance
- Single-tank design
- Touchscreen gallon counter
- PFAS-free thread tape
Aquasana, Inc. is a Haltom City, Texas company that A. O. Smith acquired in August 2016.
It sells whole house, under-sink, countertop and shower systems through its own store, its Amazon store, Home Depot, Lowe's and Walmart, where it is its own marketplace seller.

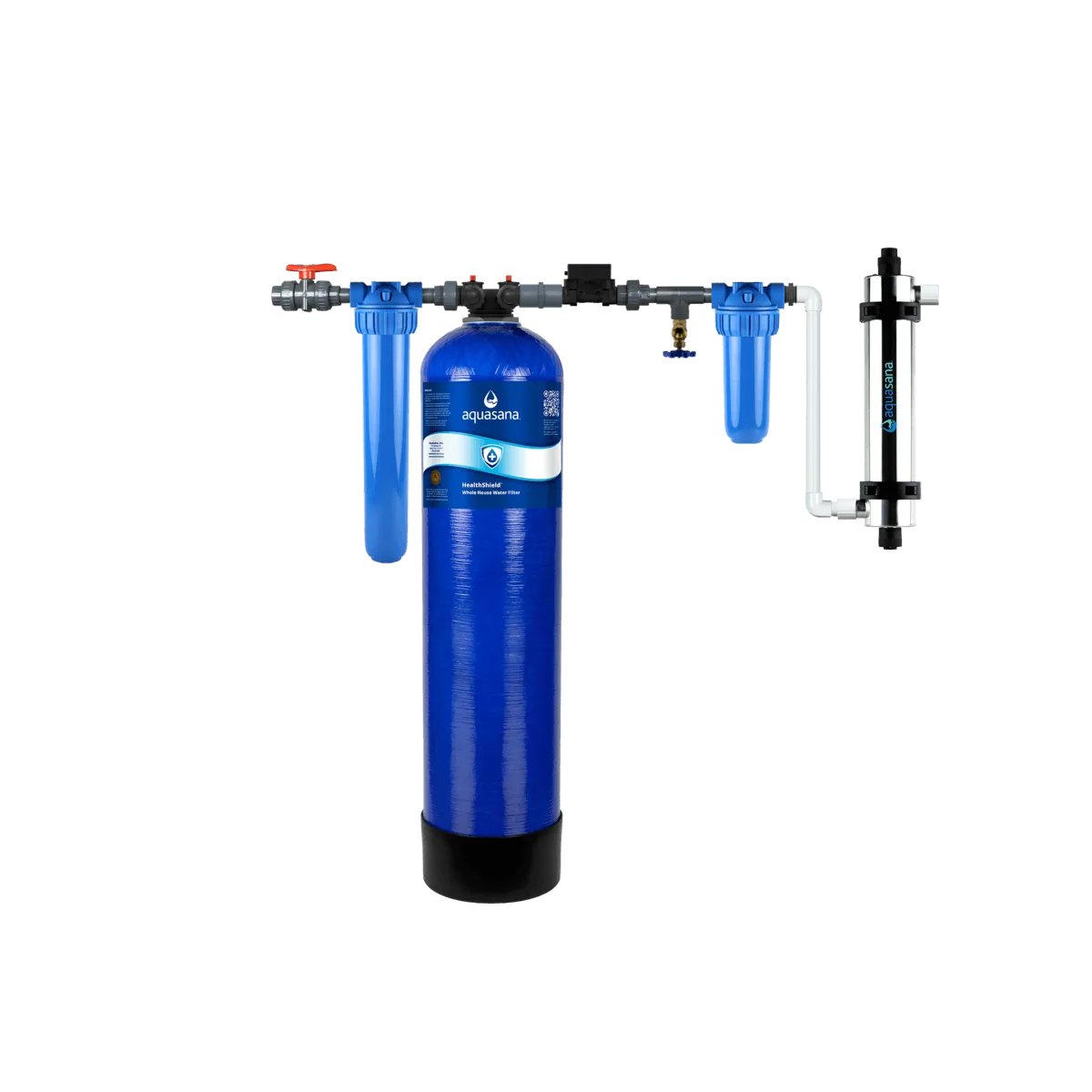

This is the Aquasana HealthShield whole house filter supplied with the Max Flow UV filter, the configuration Aquasana recommends for private wells.
The filter tank is the WH-HS, listed by WQA under NSF/ANSI 53 for PFOA, PFOS, PFNA, PFHxS, PFHpA and VOCs at 5.7 GPM over 165,000 gallons, with a condition that influent aluminum is reduced before treatment.
Aquasana's data sheet adds NSF/ANSI 401 claims for BPA and ibuprofen and lists chlorine and chloramine reduction from its own testing only. The UV stage is the AQ-UV-MF, listed by NSF under NSF/ANSI 55 Class B at 19 GPM, with a 304L stainless steel chamber and a lamp changed about every 12 months.
Rated flow is 5.7 GPM for the filter tank, and the tank is 57 inches tall and 12 inches wide. The UV controller and the tank's performance indicator each need a mains outlet.
The box holds the tank with its bypass valve, the UV filter, a 20 inch pre-filter changed every 2 months, a 10 inch post-filter changed every 6 months and the install kit.
Questions answered from our data

Is Aquasana good?We list 18 Aquasana products and score 18 of them. Their overall scores run from 3.5 to 6.4, with a median of 4.4, against a median of 4.9 for all 286 products we score.
How much does a whole house water filter cost?The 55 whole house water filters we list run from $110 to $8,626, with a median of $1,117.
How long do UV filters last?Of the 35 systems with a UV stage we list, 34 state a filter life; the most common is 6-12 months (27).
Do water filters remove PFAS?84 of the 296 systems we list claim to reduce PFAS.
