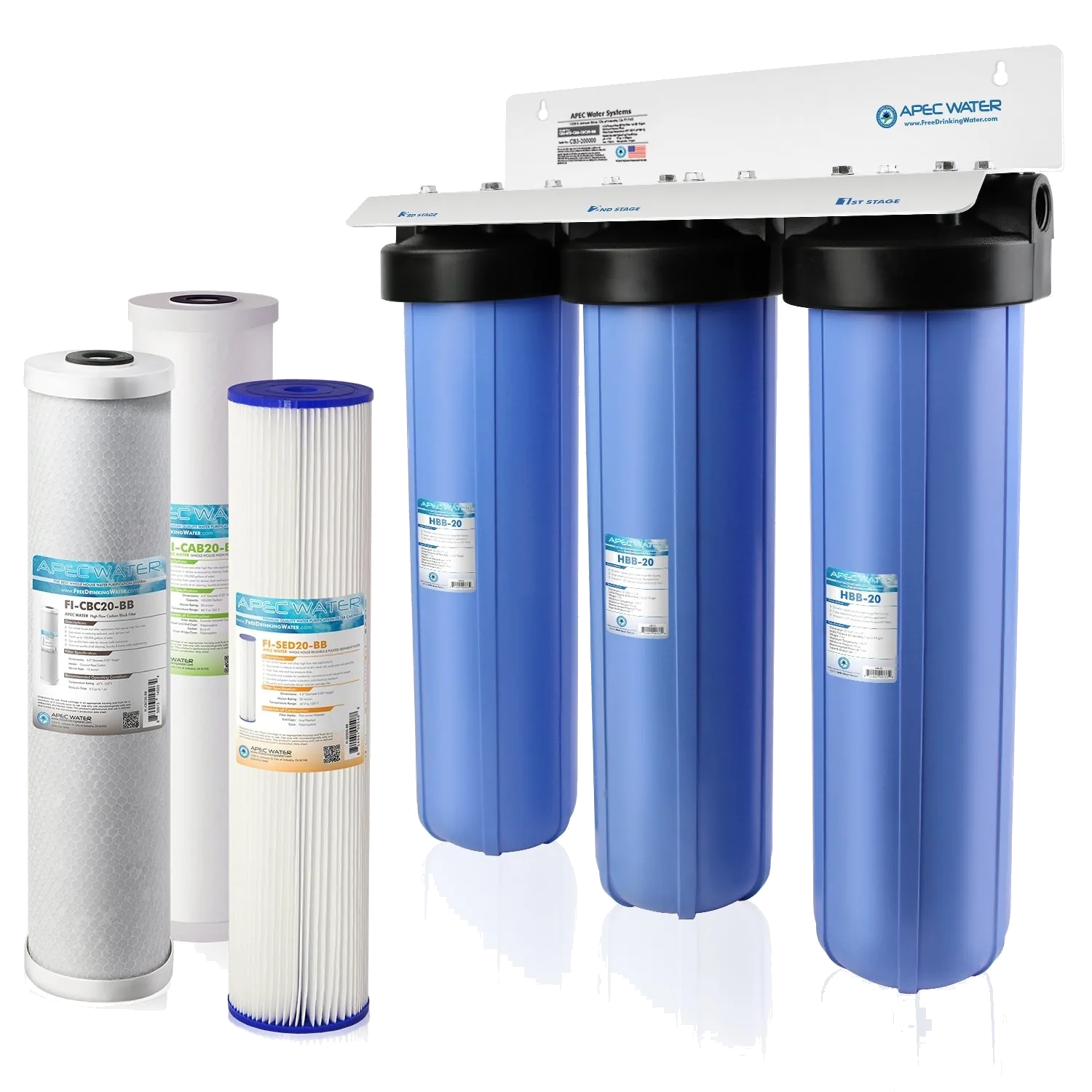

APEC Water Systems CB3-SED-CAB-CBC20-BB 3-Stage 20 Inch Big Blue Whole House Filter
- Filter life 6-12 months
- 1-year warranty
SVT Score, Mid
Three pre-mounted 20 inch Big Blue cartridges for sediment, chlorine, taste and odor, with no drain or power needed and cartridges changed every six to twelve months.
$399
We may earn a commission if you buy through this link. It never affects our scores. How this works
Usability
4.3 out of 10Strengths
- No drain or power needed
- Standard Big Blue cartridges
- Pre-assembled on a mounting bracket
- Low price for three stages
- Washable first-stage sediment filter
Drawbacks
- Short warranty
- No rated service flow
- No certification of any kind
- Mixed Amazon ratings
- Cartridges need replacing twice a year
A simple, low-cost chlorine and sediment filter, but cartridges need frequent changes
Specs
- CertificationsNot certified
- Warranty1 Year
- Connection Size1 in
- Housing MaterialPolypropylene
- Filter Lifespan / Capacity6-12 months
- Dimensions26 x 9 x 23.5 in
- Weight45 lb
- Country of OriginUSA
- Filtration TypeCarbon BlockGranular Activated CarbonSediment
- Contaminant RemovalChlorineRustSedimentSiltTaste and OdorTurbidityVOCs
Not published by APEC Water Systems: flow rate / water pressure.
At a glance
- 90 psi maximum rating
- Coconut carbon block
- 1 psi drop at 15 GPM
APEC Water Systems is the trading name of Advanced Purification Engineering Corp., a California corporation in City of Industry led by President and CEO Jason Liu.
APEC sells its reverse osmosis systems and its whole house media tanks on apecwater.com, on Amazon US and through Home Depot, Lowe's and Walmart.
The APEC Water Systems CB3-SED-CAB-CBC20-BB is a three-stage cartridge whole house filter using three 20 by 4.5 inch Big Blue housings of reinforced polypropylene, pre-mounted on a bracket with 1 inch FPT ports.
Stage one is a 30 micron washable non-woven polyester sediment filter, stage two a 25 micron granular activated carbon filter rated above 70,000 gallons at 4 GPM, and stage three a 10 micron coconut carbon block rated up to 100,000 gallons.
APEC publishes an initial pressure drop of 1 psi at 15 GPM for the assembly, a 90 psi and 100 degree F maximum, and asks for cartridges to be changed every six to twelve months. The assembly measures 26 by 9 by 23.5 inches, weighs 45 pounds, and needs no drain line or electricity.
Questions answered from our data

How much does a whole house water filter cost?The 55 whole house water filters we list run from $110 to $8,626, with a median of $1,117.
Do water filters remove chlorine?216 of the 296 systems we list claim to reduce chlorine.
Do water filters remove sediment?122 of the 296 systems we list claim to reduce sediment.
